Product Details
Place of Origin: CHINA
Brand Name: Casun
Certification: CE,ROHS,ISO
Model Number: B20SHD4359-C191
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: $22.94 - 32.94
Packaging Details: Carton:38x29xc14m
Delivery Time: 7-15 days
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Color: |
Black |
Current: |
0.6Amp |
Holding Torque: |
25Nat 200pps |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |
Color: |
Black |
Current: |
0.6Amp |
Holding Torque: |
25Nat 200pps |
Customized: |
The Motor Can Be Designed &manufactured With Customized Request. |

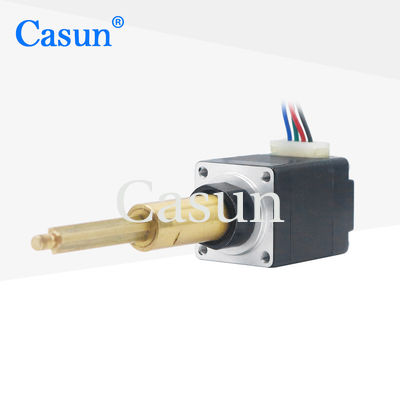

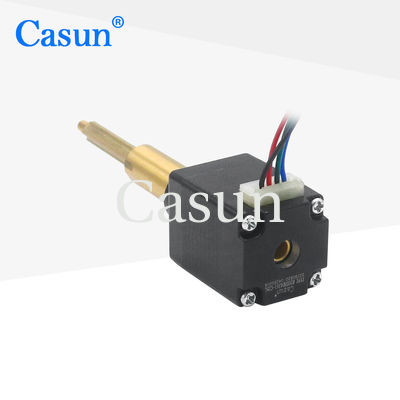

Step Motor Nema 8 Lead Guide 19.05 Lead Screw Stepper Motor Tr3.5x0.6096 For Medical Machine
A micro stepper motor with a lead screw is often used to create a linear actuator. It provides precise and controlled linear motion by converting the rotary motion of the stepper motor into linear motion through the lead screw mechanism.
1.Load Capacity: The load capacity is 25N, which means the linear actuator can handle a maximum force of 25 Newtons. This indicates the amount of weight or force the actuator can effectively move or hold without compromising its performance. It's important to consider the load requirements of your specific application to ensure the actuator can handle it.
2.Speed (200pps): The speed of 200pps indicates the maximum pulse rate at which the stepper motor can rotate. Each pulse corresponds to a step, and the speed is measured in steps per second. The actual linear speed of the actuator will depend on the lead screw pitch and the specific configuration of the system.
3.NEMA 8 Stepper Motor: The NEMA 8 designation specifies the size and mounting dimensions of the stepper motor. NEMA 8 motors are compact and typically have a smaller frame size and lower torque compared to larger NEMA sizes. They are commonly used in applications where space is limited.
Features:
Step Angel
|
1.8 ° |
Fram Size
|
20mm |
Number of Phase
|
2 Phase |
Rated Current
|
0.6Amp |
Holding Torque
|
25N at 200pps |
Resistance
|
11.5ohm |
Inductance
|
3.50mH |
Rotor Inertia
|
6g-cm² |
Motor weight
|
0.2kg |
Lead
|
19.06mm |
Connection
|
Bipolar |
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
Body Length | Diameter of Screw | Pitch | Length of Screw | ||
20 mm 34 mm 40 mm 48 mm 60 mm |
5 | 2 | 20-1000 mm | ||
8 | |||||
6.35 | 1.27 | ||||
3.175 | |||||
6.35 | |||||
6.5 | 3 | ||||
6.35 | |||||
8 | 1 | ||||
2 | |||||
4 | |||||
8 | |||||
12 |
