NEMA 16 Non Captive Stepper Motor 393925mm 0.28A With CE ROHS

NEMA 16 Non Captive Stepper Motor 393925mm 0.28A With CE ROHS

Brand Name:	Casun
Model Number:	39SHD0609-40N
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

3.0V

Current:

0.28A

Holding Torque:

120mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

NEMA 16 Non Captive Stepper Motor

Non Captive Stepper Motor 0.28A

Product Description

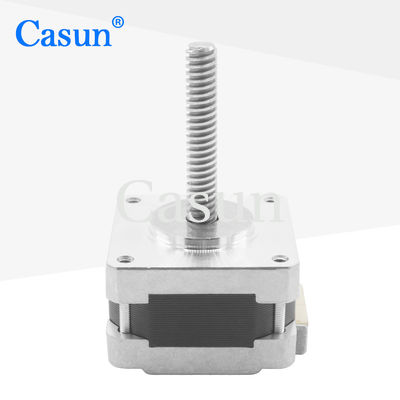

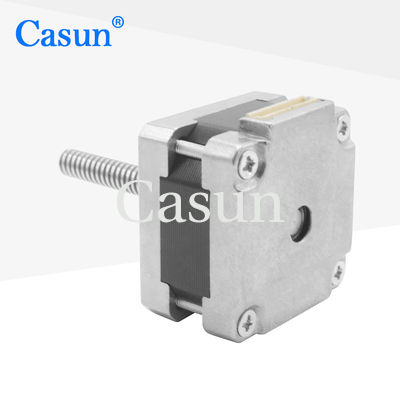

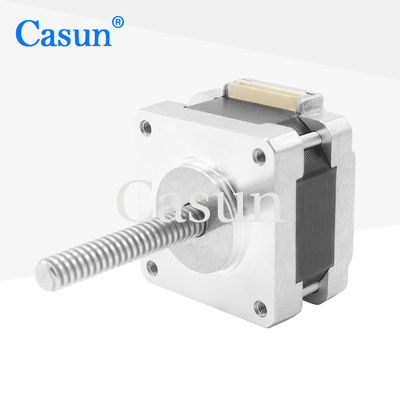

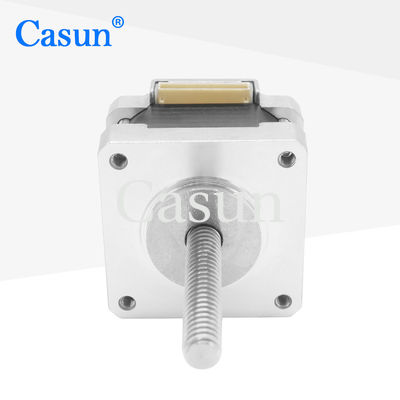

NEMA 16 Non Captive Stepper Motor 39×39×25mm 0.28A With CE ROHS

NEMA 16 Non Captive Stepper Motor 39×39×25mm 0.28A With CE ROHS. This motor achieves forward and backward movement by rotating the screw rod in opposite directions. Precise adjustments can be made through signal control.

Features

Professional drivetrain solution specialist
Multiple international certifications for high-tech and electronic industry equipment
Seeking dealers
Professional research, development, and manufacturing
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	39 mm
Number of Phase	2 Phase
Rated Current	0.28 Amp
Holding Torque	120 mN.m
Resistance	44 ohm
Inductance	20 mH
Rotor Inertia	15 g·cm²
Motor Weight	0.17 kg
Lead Screw	-
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Submodels

Body Length	20 mm, 34 mm, 40 mm, 48 mm, 60 mm
Diameter of Screw	5 mm, 8 mm, 6.35 mm
Pitch	2 mm, 1.27 mm, 3.175 mm, 6.35 mm, 6.5 mm
Length of Screw	20-1000 mm

Options

Encoder

Brake

Gearbox

Shaft

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
