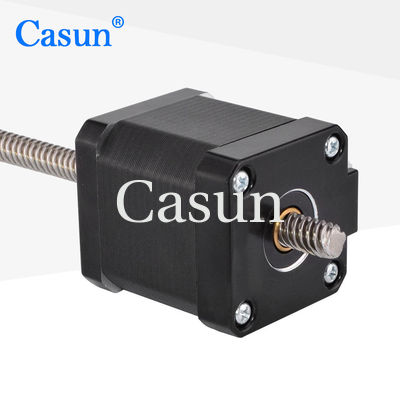

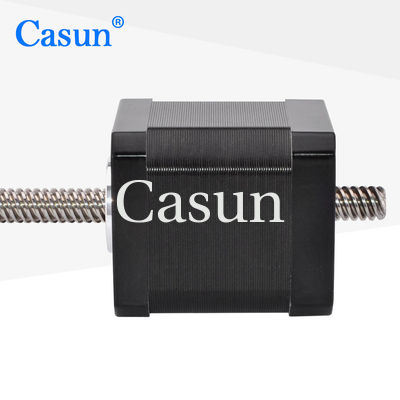

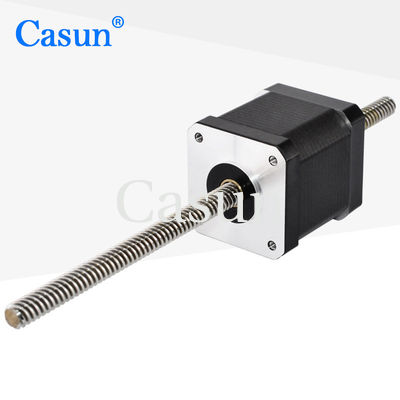

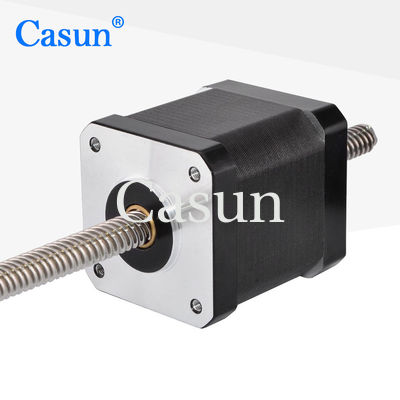

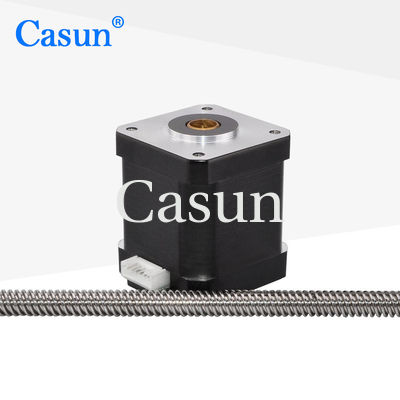

48mm Body 450mN.M Non Captive Stepper Motor Tr5*2 NEMA 17 For Medical Instruments

48mm Body 450mN.M Non Captive Stepper Motor Tr5*2 NEMA 17 For Medical Instruments

Brand Name:	Casun
Model Number:	42SHD0412-01TT
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

3.84V

Current:

1.2A

Holding Torque:

450mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

48mm Non Captive Stepper Motor

NEMA 17 Non Captive Stepper Motor

450mN.M Non Captive Stepper Motor

Product Description

48mm Body 450mN.M Non Captive Stepper Motor Tr5×2 NEMA 17 For Medical Instruments

Non Captive Stepper Motor with 48mm body, 450mN.M torque, Tr5×2 lead screw, and NEMA 17 standard, specifically designed for medical instruments. Capable of controlling the position and motion trajectory of cutting tools, enabling complex machining operations such as carving and cutting. Can achieve small position adjustment and precise positioning.

Company Capabilities

Professional drivetrain solution specialist
Open to contract manufacturing opportunities
12 years of operation in China with over 800 customers served
Specialized in providing customized services
Wanted dealers!

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.2 Amp
Holding Torque	450 mN.m
Resistance	3.2 ohm
Inductance	4.2 mH
Rotor Inertia	72 g-cm²
Motor Weight	0.38 kg
Lead Screw	Tr8×2
Connection	Bipolar

Operating Specifications

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Torque Curves

Performance curves available upon request.

Product Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Get a Quote

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
