57*54mm Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Dc Motor

57*54mm Closed Loop Nema 23 Stepper Motor 1.2N.M For Cnc Kit Dc Motor

Brand Name:	Casun
Model Number:	57SHD4406-20BQH
MOQ:	10pcs
Price:	US $16.00 - 9.00/ Piece
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	100000/pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, ROHS

Shaft:

6.35mm

Torque:

1.2N.m

Current:

Voltage:

2.7V

Body:

54mm

Application:

CNC Machine

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Closed Loop Nema 23 Stepper Motor

1.2N.M Nema 23 Stepper Motor

Product Description

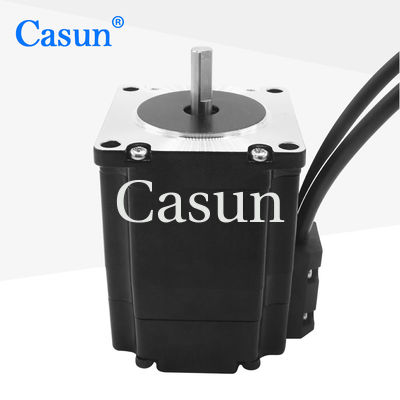

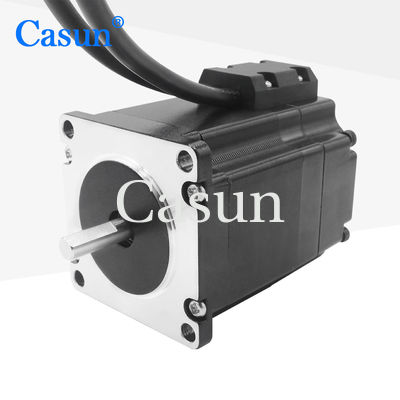

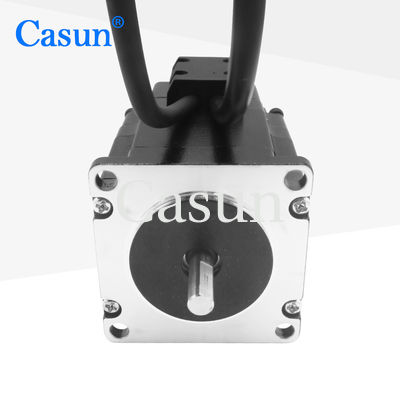

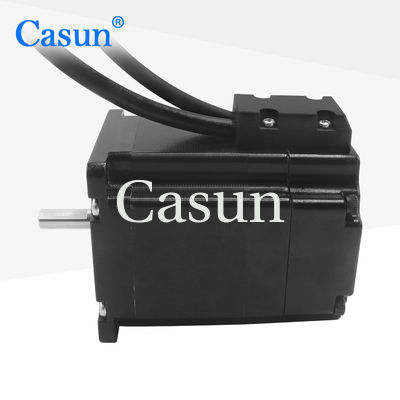

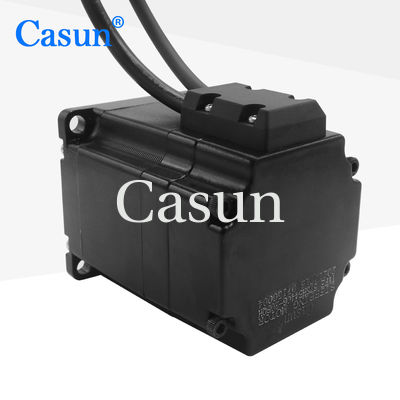

57×54mm Closed Loop NEMA 23 Stepper Motor 1.2N.M for CNC Kit DC Motor

NEMA 23 closed-loop stepper motor, 57×57×54mm, 1.8 degree step angle, 2 phase, with 1.2N.m holding torque. This high-quality 57×54mm closed-loop NEMA 23 stepper motor is specifically designed for CNC kits and DC motor applications.

The 57mm closed-loop stepper motor combines the characteristics of stepper motors, enabling precise positioning control and being suitable for applications that require high-precision positioning.

Key Features

Bipolar or unipolar versions available
Custom services and contract manufacturing available
Available in single- or double-shaft versions
Professional drivetrain solution specialist
Customizations available upon request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	3 A
Holding Torque	1.2 N.m
Resistance	0.9 ohm
Inductance	4.5 mH
Rotor Inertia	260 g-cm²
Motor Weight	0.8 kg
Shaft	20 mm
Connection	Bipolar

Operating Specifications

Motor

Parameter	Specification
Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Gear Box

Parameter	Specification
Housing Material	Metal
Bearing at Output	Ball Bearings
Max. Radial Load (12mm from flange)	≤80N
Max. Shaft Axial Load	≤30N
Radial Play of Shaft (near to Flange)	≤0.06mm
Axial Play of Shaft	≤0.3mm
Backlash at No-load	1.5°

Submodels

Motor Length	Length of Gearbox	Ratio	Efficiency
34 mm	27.2 mm	3.71	90%
40 mm		5.18	35 mm
48 mm		13.76	80%
60 mm		19.2	26.8
42.7 mm	51	70%	71
	99.5	139

Customization Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Available Options

Encoder

Brake

Gearbox

Shaft

Please click the button below to tell us your requirements and get a customized quote.

Get a Quote
