Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet

Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet

Nema 34 Closed Loop Stepper Motor

Closed Loop Stepper Motor 1000ppr

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

86SHD4402-30QH

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
8.3N.m
Current:
10A
Motor Length:
127mm
Shaft:
30mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$99.9-$199.99
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

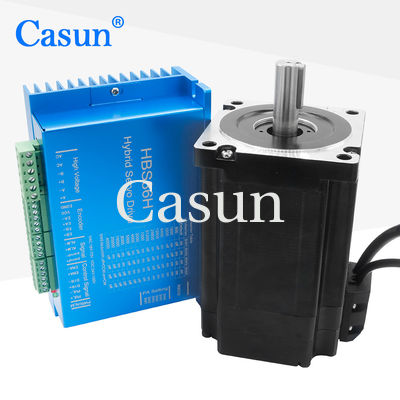

NEMA 34 8.3N.m 4axis closed loop stepper motor kits with magnetic encoder for CNC machines

NEMA 34 refers to a standard size for stepper motors, with a mounting flange size of 3.4 inches (86 mm). The "8.3N.m" specification indicates the holding torque of the motor, which is a measure of its ability to maintain position when subjected to external forces. In this case, the motor has a holding torque of 8.3 Newton-meters.


A 4-axis closed-loop stepper motor kit with a magnetic encoder is designed for use in CNC (Computer Numerical Control) machines. Closed-loop stepper systems incorporate feedback mechanisms, such as encoders, to monitor the position of the motor shaft and provide feedback to the control system. This allows for more accurate positioning and greater resistance to stalling or losing steps, compared to open-loop stepper systems.


The magnetic encoder is a type of position sensor that uses magnets and Hall effect sensors to detect the position of the motor shaft. It provides precise feedback on the motor's position, allowing the control system to make adjustments in real time and ensure accurate movements.


Overall, a NEMA 34 8.3N.m 4-axis closed-loop stepper motor kit with a magnetic encoder would be suitable for CNC machines that require high torque and precise positioning capabilities. It provides improved performance and reliability compared to open-loop stepper systems, making it ideal for applications where accuracy is crucial, such as CNC milling, routing, or 3D printing.


Features:

  • High torque and high precision

  • For high-tech industry and electronic industry equipment

  • Available in single or double shaft versions

  • Established in China for 12 years and has served more than 800 customers.

  • Professional research and development manufacturing

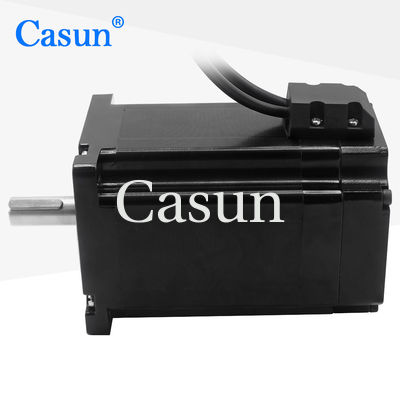

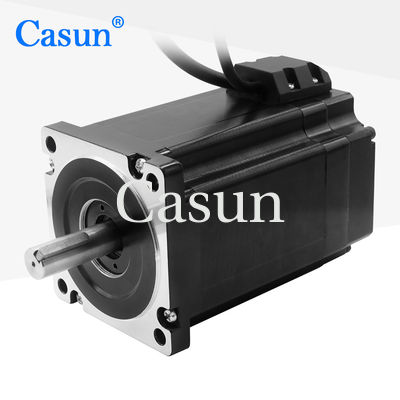

Appearance

Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 0

Dimensions

Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 1

Motor Specifications



Step Angel

1.8 °

Fram Size

86mm

Number of Phase

2 Phase

Rated Current

10 A

Holding Torque

8.3N.m

Resistance

0.2ohm

Inductance

7.5 mH

Rotor Inertia

4500 g-cm²

Motor weight

1.6 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves

Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 2Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 3







Submodels

Model Holding
Torque
Rated
Current
Resistance
per phase
Inductance
per phase
Detent
torque
Rotor
inertia
Lead
wire
Motor
length
mN.m A Ω mH mN.m g.cm² No. mm
60SHD4201 650 0.6 15 20 50 280 4 45
60SHD4401 1500 2.8 1 3.3 70 450 4 56
60SHD4601 3200 4.2 0.75 3.7 120 580 4 86
60SHD6602 2500 3 1.55 3.7 120 580 4



























Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 4 Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 5 Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 6 Nema 34 Encoder 8.3N.M 86x127mm Closed Loop Stepper Motor 1000ppr With Nema 24 Datasheet 7
