NEMA 34 Encoder Step Motor 12N.M Big Holding Torque Close Loop Stepper Motor For CNC

NEMA 34 Encoder Step Motor 12N.M Big Holding Torque Close Loop Stepper Motor For CNC

Brand Name:	Casun
Model Number:	86SHD4509-34Q
MOQ:	1PC
Price:	$29.9-$39.99
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

12N.m

Current:

Motor Length:

149mm

Shaft:

34mm Length

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

NEMA 34 Encoder Step Motor

Big Holding Torque Encoder Step Motor

Product Description

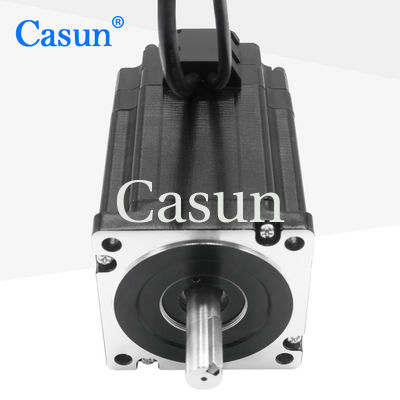

NEMA 34 Encoder Step Motor 12N.M Big Holding Torque Close Loop Stepper Motor For CNC

Product Overview

NEMA 34 12N.m closed loop 1000PPR stepper motor kits with magnetic encoder for layer machines and CNC applications.

A closed-loop stepper motor system utilizes feedback to ensure accurate positioning. In this case, the system includes a magnetic encoder, which provides position feedback to the motor controller. This feedback allows the controller to monitor and adjust the motor's position in real-time, minimizing potential errors and improving overall accuracy.

The 1000PPR (Pulses Per Revolution) specification indicates the resolution of the magnetic encoder. It means that the encoder generates 1000 pulses for every complete revolution of the motor shaft. This high resolution enables precise control and positioning in layer machines or any other application that requires accurate movement.

High torque and high precision
For high-tech industry and electronic industry equipment
Available in single or double shaft versions
Established in China for 12 years and has served more than 800 customers
Professional research and development manufacturing

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	60mm
Number of Phase	2 Phase
Rated Current	6A
Holding Torque	12N.m
Resistance	1.5ohm
Inductance	7.2 mH
Rotor Inertia	3600g-cm²
Motor Weight	5.15 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130 deg C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min

Torque Curves

Submodels

Model	Holding Torque	Rated Current	Resistance per phase	Inductance per phase	Detent torque	Rotor inertia	Lead wire	Motor length
60SHD4201	650 mN.m	0.6 A	15 Ω	20 mH	50 mN.m	280 g.cm²	4 No.	45 mm
60SHD4401	1500 mN.m	2.8 A	1 Ω	3.3 mH	70 mN.m	450 g.cm²	4 No.	56 mm
60SHD4601	3200 mN.m	4.2 A	0.75 Ω	3.7 mH	120 mN.m	580 g.cm²	4 No.	86 mm
60SHD6602	2500 mN.m	3 A	1.55 Ω	3.7 mH	120 mN.m	580 g.cm²	4 No.	-

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Get a Quote
