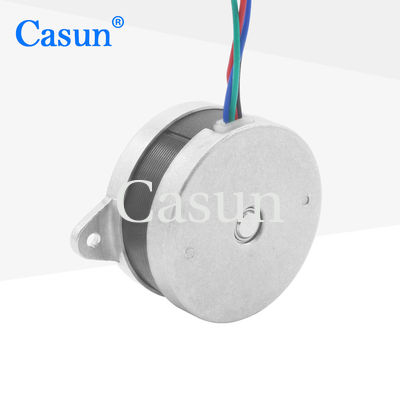

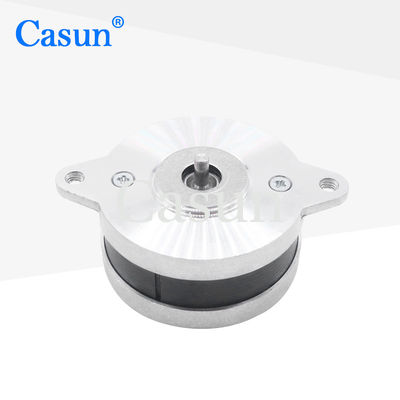

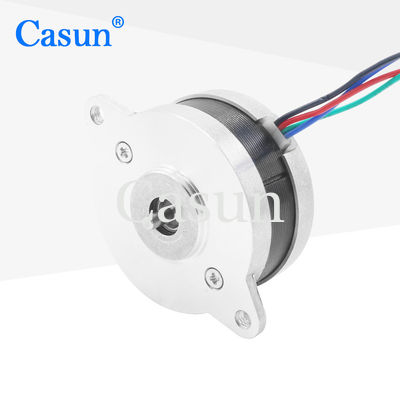

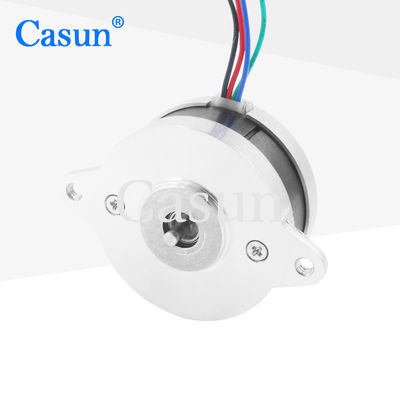

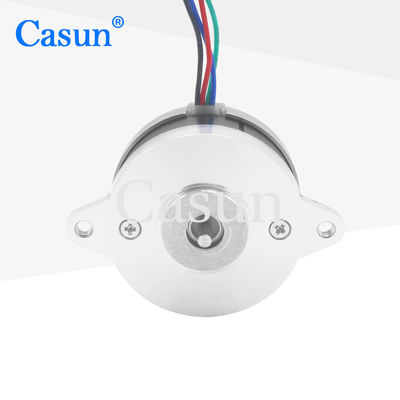

1.8 Degree 2 Phase NEMA 14 Micro Stepper Motor Permanent Magnet Motor For SMT Machine

name

1.8 Degree 2 Phase NEMA 14 Micro Stepper Motor Permanent Magnet Motor For SMT Machine

Brand Name: Casun
Model Number: 36SHD4401-6A
MOQ: 1PC
Price: $4.14-$6.98
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
100mN.m
Current:
1.0A
Motor Length:
17.7mm
Shaft:
Gear Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

NEMA 14 Micro Stepper Motor

,

1.8 Degree Micro Stepper Motor

,

Micro Stepper Motor For SMT Machine

Product Description

1.8 Degree 2 Phase NEMA 14 Micro Stepper Motor Permanent Magnet Motor For SMT Machine

Camera focusing, robots, electronic instruments, medical equipment.

Small in size, it can be widely used in limited space situations.



Features:

  • Welcoming contract manufacturing

  • Offer specialised services

  • Available in single or double shaft versions

  • Every model of our stepper motor is adaptable to a variety of situations

  • Offer "numerous international certifications" for high-tech and electronic industry equipment





Motor Specifications

Step Angel

1.8 °

Fram Size

36 mm

Number of Phase

2 Phase

Rated Current

1.0 A

Holding Torque

100 mN.m

Resistance

10 ohm

Inductance

6.0 mH

Rotor Inertia

13.7 g-cm²

Motor weight

0.07 kg

Number of leads

4

Connection

Bipolar





Appearance



1.8 Degree 2 Phase NEMA 14 Micro Stepper Motor Permanent Magnet Motor For SMT Machine 0

Dimensions

1.8 Degree 2 Phase NEMA 14 Micro Stepper Motor Permanent Magnet Motor For SMT Machine 1



Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
