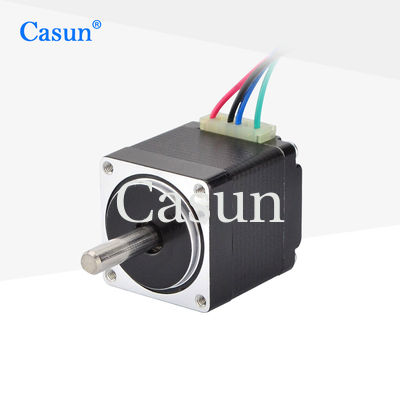

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter

Small Size Nema 11 Stepper Motor

0.5A Nema 11 Stepper Motor

Place of Origin:

China

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

28SHD4218-15P

Contact Us

Request A Quote
Product Details
Steper Angle:
1.8 Degree
Phase:
2
Rated Voltage:
4.75V
Current:
0.5A
Holding Torque:
60mN.m
Brand:
Casun
Shaft Diameter:
5mm
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$8.77-$16.25
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors With Certifications

NEMA 11Stepper Motor, 28*28*32 mm, 0.5A, CE, ROHS, ISO



It can move forward and backward. The motor can go forward and backward by twisting the screw rod in the opposite direction.


can be precisely changed by controlling the signal.





Features:

expert in drivetrain solutions


Seek vendors for high-tech and electronic industry equipment with "multiple international certifications"!


Expert manufacturing, development, and research


alterations upon request

Dimensions

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter 0

Motor Specifications







Step Angel



1.8 °



Fram Size



28 mm



Number of Phase



2 Phase



Rated Current



0.5 Amp



Holding Torque



60mN.m



Resistance



9.5ohm



Inductance



5.9mH



Rotor Inertia



9g-cm²



Motor weight



0.12kg



Lead Screw



Screw



Connection



Bipolar





Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves







Submodels




Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12





Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter 1 Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter 2 Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter 3 Small Size Nema 11 Stepper Motor Casun 0.5A Dc Motors 5mm shaft diameter 4
