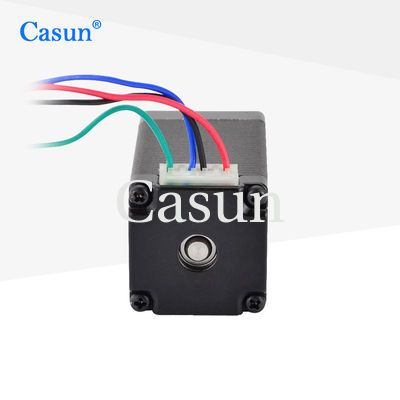

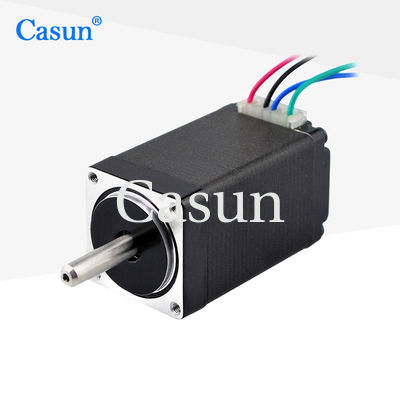

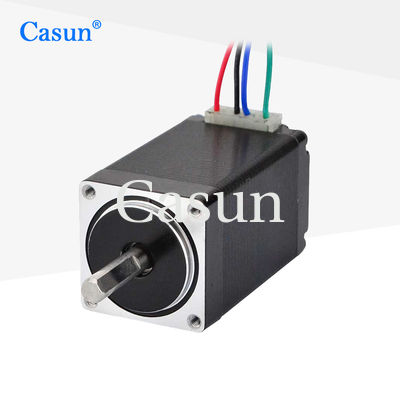

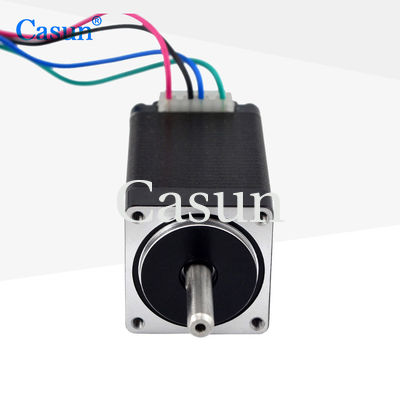

hybrid 28*52mm Nema 11 Stepper Motor 0.67A Dc Motors With ROHS

hybrid 28*52mm Nema 11 Stepper Motor 0.67A Dc Motors With ROHS

Brand Name:	Casun
Model Number:	28SHD4501-8B
MOQ:	10PC
Price:	$8.64-$16.88
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

6.16V

Current:

0.67A

Holding Torque:

120mN.m

Brand:

Casun

Shaft Diameter:

4.5mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Hybrid Nema 11 Stepper Motor

0.67A Nema 11 Stepper Motor

Product Description

Hybrid 28×52mm NEMA 11 Stepper Motor 0.67A DC Motors With ROHS

Product Overview

NEMA 11 Stepper Motor, 28×28×52 mm, 0.67A, CE, ROHS, ISO certified. This high-quality stepper motor offers precise forward and backward movement control through opposite direction screw rotation.

Motion can be precisely controlled by adjusting the input signal, making it ideal for applications requiring accurate positioning.

Expert in drivetrain solutions
Multiple international certifications
Professional manufacturing, development, and research
Custom alterations available upon request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 Amp
Holding Torque	120 mN.m
Resistance	9.2 ohm
Inductance	7.2 mH
Rotor Inertia	18 g·cm²
Motor Weight	0.2 kg
Lead Wiring	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

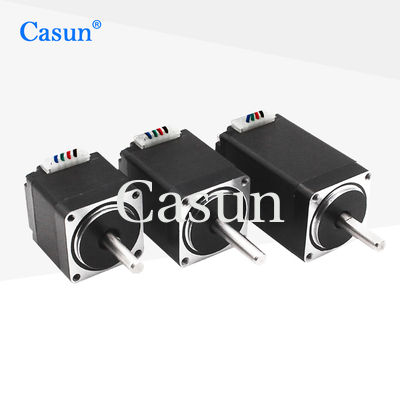

Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm	5	2	20-1000 mm
34 mm
40 mm
48 mm
60 mm

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Frequently Asked Questions

1. Who are we?

We are based in Guangdong, China, established in 2011. Our primary markets include Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), and Eastern Asia (8.00%). Our office employs 51-100 people dedicated to quality motor production.

2. How can we guarantee quality?

We maintain strict quality control through pre-production samples and final inspection before shipment to ensure every motor meets our high standards.

3. What can you buy from us?

We specialize in Stepper Motors and BLDC Motors for various industrial applications.

4. Why should you buy from us instead of other suppliers?

We have over 11 years of specialized experience in producing and selling stepper motors, ensuring expert knowledge and reliable products.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, PayPal. Languages Spoken: English, Chinese, Japanese.
