57*57*50mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery

57*57*50mm 0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery

Textile Machinery NEMA 23 Stepper Motor

0.9N.M NEMA 23 Stepper Motor

Place of Origin:

CHINA

Brand Name:

Casun

Certification:

CE,ROHS,ISO

Model Number:

57SHD0203-21BH

Contact Us

Request A Quote
Product Details
Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
0.7A
Motor Length:
50mm
Shaft:
Milling Flat Shaft 21mm Length
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$3.14-$5
Packaging Details
Carton:36x29x14cm
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
RELATED PRODUCTS
Contact Us
86-020-36907671
Contact Now
Product Description

57*57*50mm Stepper Motor 0.9N.M NEMA 23 For CNC Robots Textile Machinery

The NEMA 23 stepper motors are suitable for applications that require driving large loads or generating large torques.

3D printers, CNC machine tools, automated production lines, and industrial robots.



Features:

  • Our engineers will contact you within two days to offer the most effective solution

  • For high-tech industry and electronic industry equipment

  • Contract manufacturing accepted

  • Having operated in China for 12 years, we have catered to over 800 customers

  • High torque and high precision

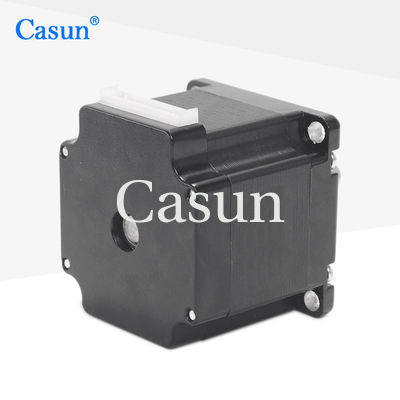

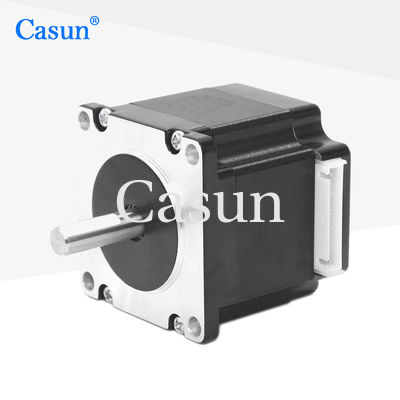

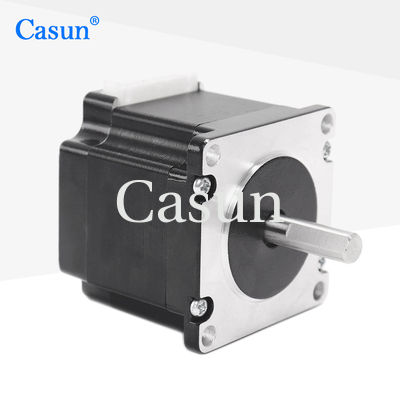

Appearance

57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 0

Dimensions

57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.7 A

Holding Torque

900 mN.m

Resistance

12 ohm

Inductance

40 mH

Rotor Inertia

220 g-cm²

Motor weight

0.55 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 2 57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 3 57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 4 57*57*50mm  0.9N.M NEMA 23 Stepper Motor For CNC Robots Textile Machinery 5
