Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

name

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

Brand Name: Casun
Model Number: 86SHD4317-37QH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
8.5N.m
Current:
6.0A
Motor Length:
112mm
Shaft:
Keyway Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Nema 34 Closed Loop Stepper Motor

,

8.5Nm Closed Loop Stepper Motor

Product Description

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment

The closed-loop control system can counteract external interference and errors by detecting motion status and position information.

Compatible with existing open-loop stepper motor control systems.



Features:

  • High torque and high precision

  • Our products offer high torque and precision

  • Expertise in professional research and development manufacturing

  • Our engineers will reach out to you within 48 hours to offer the optimal solution

  • A ten-year warranty for confident purchases





Motor Specifications



Step Angel

1.8 °

Fram Size

86 mm

Number of Phase

2 Phase

Rated Current

6.0 A

Holding Torque

8.5 N.m

Resistance

0.54 ohm

Inductance

5.0 mH

Rotor Inertia

2700 g-cm²

Motor weight

3.8 kg

Number of leads

4

Connection

Bipolar

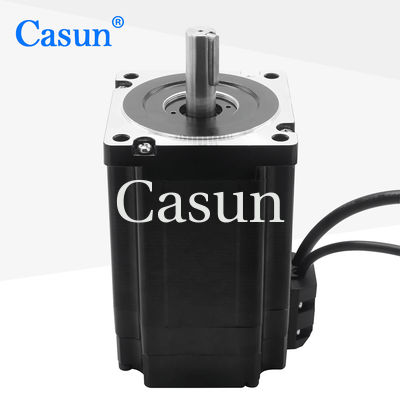

Appearance

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 0

Dimensions

Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 2 Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 3 Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 4 Nema 34 Closed Loop Stepper Motor 8.5Nm 6.0A With CE For Industrial Automation Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
