products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Pancake Stepper Motor
Created with Pixso.

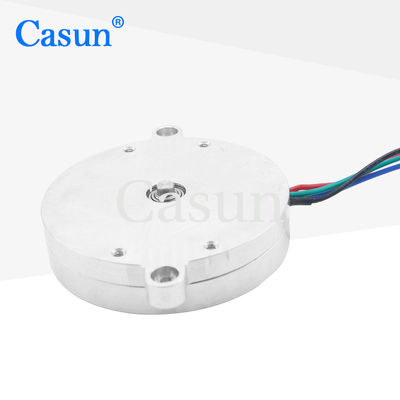

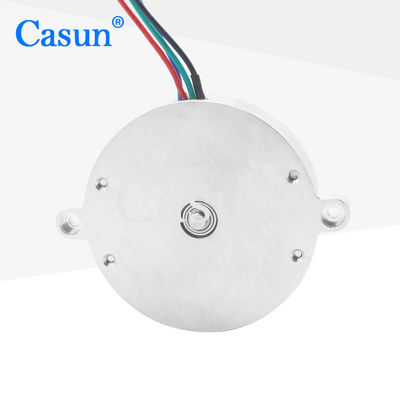

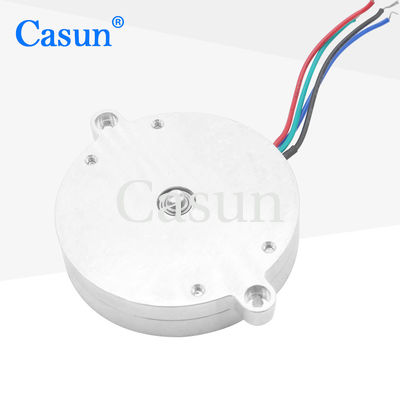

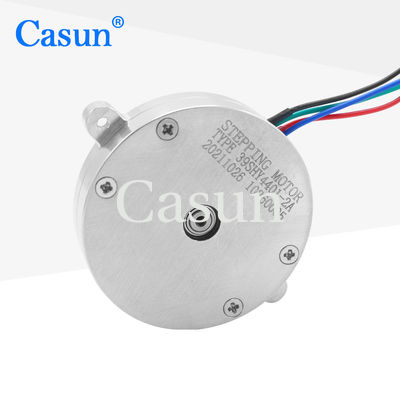

1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder

name

1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder

Brand Name: Casun
Model Number: 39SHY4401-2A
MOQ: 1PC
Price: $9.68-13.46
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
11.5mm
Step Angle:
1.8°
Holding Torque:
30mN.m
Number Of Phase:
2
Output Shaft:
Gear
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree Thin Stepper Motor

,

NEMA 16 Thin Stepper Motor

Product Description

1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder



The 39mm motors are more easily integrated with other mechanical components or circuits.

Smart Home, Precision instruments, Small automation equipment.



Features:

  • Versions in unipolar or bipolar are offered.

  • Ten-year warranty and purchase with confidence

  • Established in China for 12 years and has served more than 800 customers

  • Seasoned expert in drivetrain solutions

  • Each model of stepper motor can be suitable for different scenarios

Dimensions

1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder 0







Motor Specifications



Step Angel



1.8 °

Fram Size



39 mm

Number of Phase



2 Phase

Rated Current



0.4 A

Holding Torque



52 mN.m

Resistance



100MΩmin.

Inductance



2.2 mH

Rotor Inertia



-

Motor weight



-

Number of leads



4

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min









Torque Curves






Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder 1 1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder 2 1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder 3 1.8 Degree Thin Stepper Motor NEMA 16 Flat Motor 0.4A 30mN.M 39*39*9.8mm For Feeder 4





Please click the "Get  a quote" button below to tell us your requirements.
