Non Captive Stepper Motor
Created with Pixso.

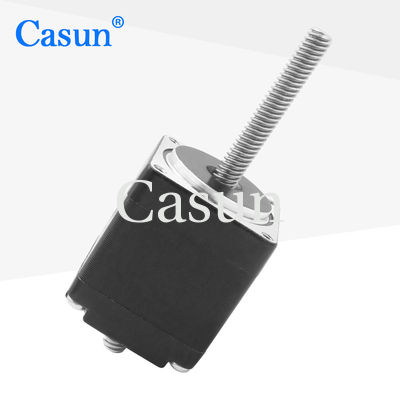

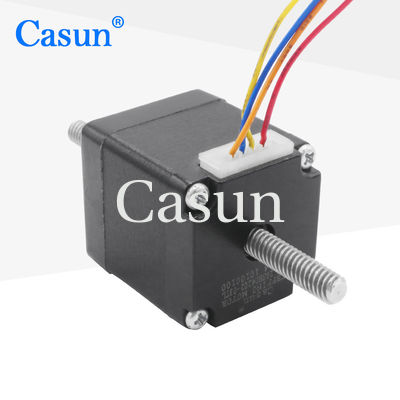

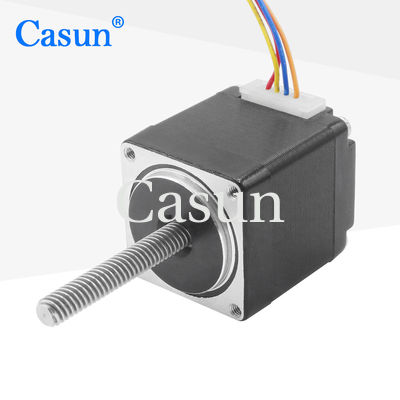

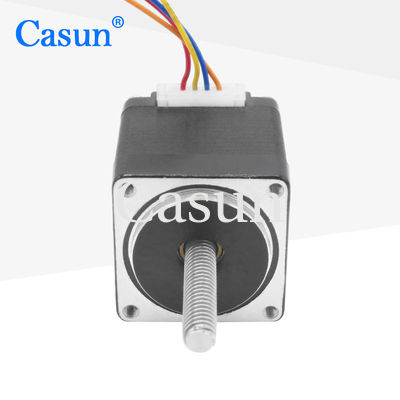

1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4

name

1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4

Brand Name: Casun
Model Number: 28SHD4202-03TL
MOQ: 1PC
Price: $9.94-$12.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
32mm
Current:
0.67Amp
Holding Torque:
50mN.m
Voltage:
3.75 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

Tr5×4 Non Captive Stepper Motor

,

Non Captive Stepper Motor

,

Mini Hybrid Non Captive Stepper Motor

Product Description

The NEMA 11 through screw stepper motor can convert rotational motion into linear motion.

The stepper motor does not accumulate errors during operation, ensuring consistency and repeatability of motion.



Features:

  • Bipolar or unipolar versions available

  • Dealers are actively sought!

  • We have been established in China for 12 years and have served over 800 clients

  • Each model of our stepper motor is suitable for various applications

  • With our professional research and development manufacturing capabilities





Motor Specifications





Step Angel



 1.8 °

Fram Size



 28mm

Number of Phase



 2 Phase

Rated Current



 0.67Amp

Holding Torque



 50 mN.m

Resistance



 5.6 ohm

Inductance



 3.9mH

Rotor Inertia



 9g-cm²

Motor weight



 0.12kg

Lead Screw



 Tr5X4

Connection



Bipolar

Dimensions

1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4 0


















Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels






Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4 1 1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4 2 1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4 3 1.8 Degree Lead Screw Motor Mini Hybrid NEMA 11 Non Captive Stepper Motor Tr5×4 4





Please click the "Get  a quote" button below to tell us your requirements.











Tags:

Nema11 Non Captive Stepper Motor

Through Screw Non Captive Stepper Motor

Casun stepper motor for milling machine
