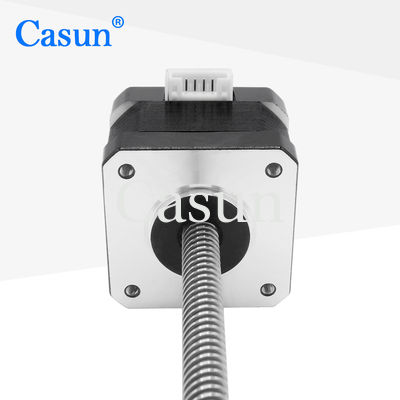

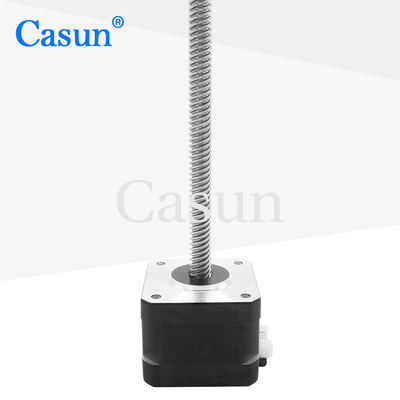

External Drive Screw Linear Motor NEMA 17 with CE ROHS for Laboratory Automation

Allowing the motor to control the stroke with more precise steps improves the accuracy of motion control.

Laboratory automation, semiconductor processing, transportation equipment.

Features:

• Bipolar or unipolar versions available

• Specializing in tailor-made services is our expertise

• Available in single or double shaft versions

• Ten-year warranty and purchase with confidence

• Our engineers will be in touch within 48 hours to provide the best solution

Motor Specifications

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N

Torque Curves

Submodels

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft
