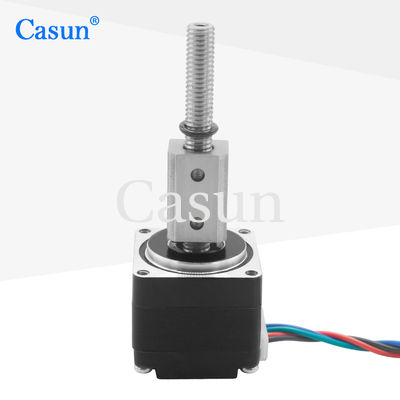

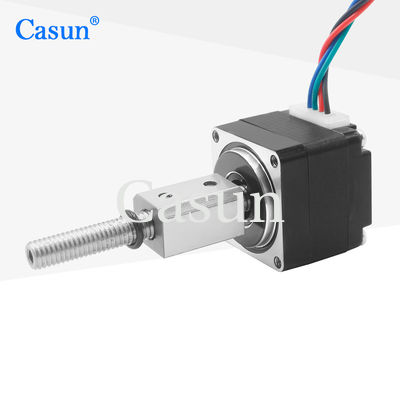

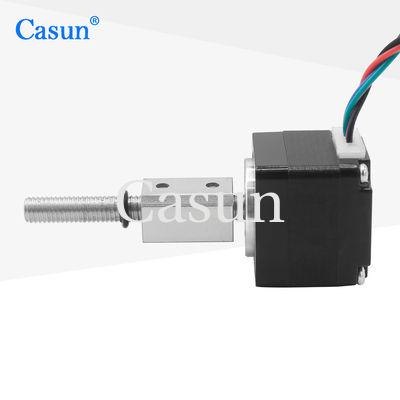

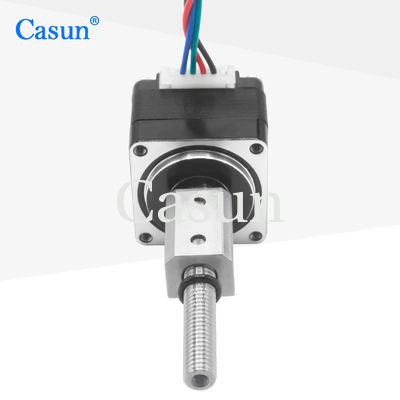

NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4050-51GP

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.94-$12.8

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:

Vision System Ball Screw Stepper Motor

,

NEMA 8 Ball Screw Stepper Motor

,

25mm Ball Screw Stepper Motor

Body:
25mm
Current:
0.5Amp
Holding Torque:
32mN.m
Voltage:
3.5 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Body:
25mm
Current:
0.5Amp
Holding Torque:
32mN.m
Voltage:
3.5 VDC
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The ball screw uses the ball to circulate and roll between the nut and the screw to move the load, which can significantly reduce friction and improve transmission efficiency.

Provides high-precision linear motion.



Features:

  • Bipolar or unipolar versions available

  • We are looking for dealers!

  • We have been established in China for 12 years and have served over 800 clients

  • Enjoy a ten-year warranty for peace of mind with your purchase

  • With our professional research and development manufacturing capabilities





Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



32 mN.m

Resistance



7.2 ohm

Inductance



3.2mH

Rotor Inertia



5g-cm²

Motor weight



0.12kg

Lead Screw



Tr6X1

Connection



Bipolar

Dimensions

NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System 0








Operating Specifications



Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels






Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System 1 NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System 2 NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System 3 NEMA 8 Ball Screw Stepper Motor 0.5A 25mm Body For Vision System 4





Please click the "Get  a quote" button below to tell us your requirements.
