Home > products > Hybrid Stepper Motor > 1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

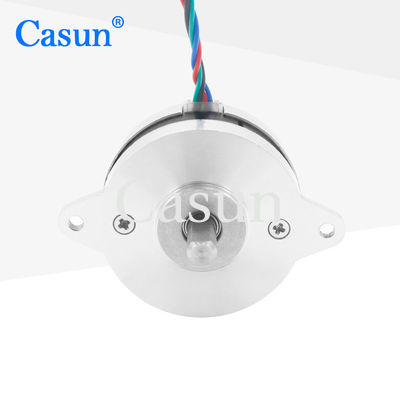

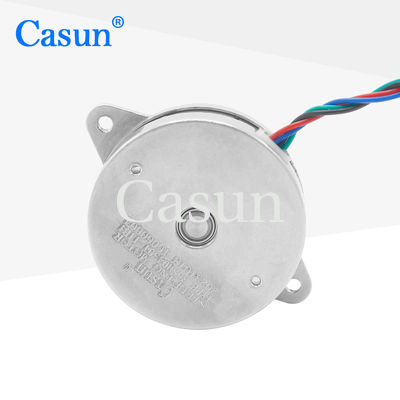

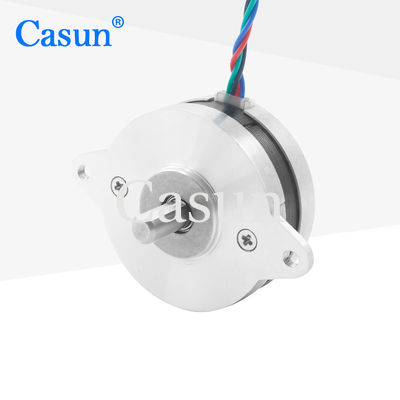

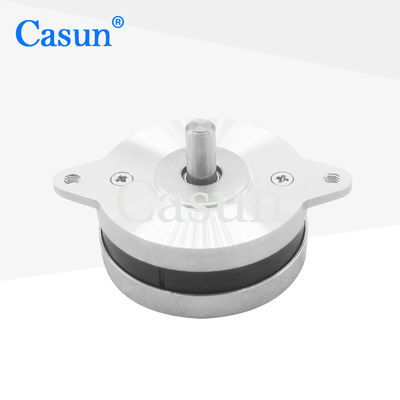

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 36SHD4301-11B1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

1.8 Degree SMT Stepper Motor

,

90mN.m SMT Stepper Motor

,

6.6V SMT Stepper Motor

Step Angel:
1.8°
Holding Torque:
70mN.m
Current:
0.3A
Motor Length:
15.4mm
Shaft:
11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
70mN.m
Current:
0.3A
Motor Length:
15.4mm
Shaft:
11mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

They have high stiffness and good torque characteristics, which enables them to maintain good positioning accuracy even under load.

Provide different configuration options, such as different step angles, lengths, and torque levels.



Features:

  • Our engineering team will reach out within 48 hours to deliver the optimal solution

  • Expert in drivetrain solutions

  • Delivering high torque and accuracy

  • Provide bespoke services

  • Customizations on request





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.3 A

Holding Torque

70 mN.m

Resistance

15.5 ohm

Inductance

7 mH

Rotor Inertia

4 g-cm²

Motor weight

0.06 kg

Number of leads

4

Connection

Bipolar





Appearance



1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor 0

Dimensions

1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor 1





Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters,

installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
