Home > products > Non Captive Stepper Motor > NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

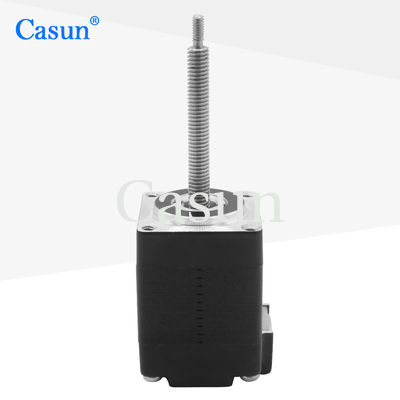

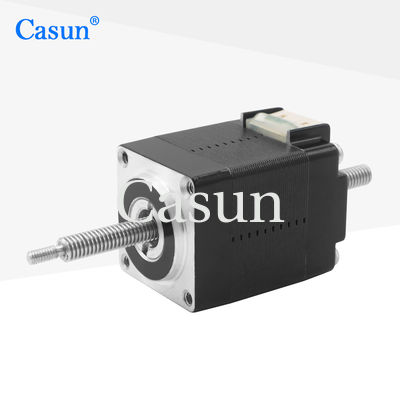

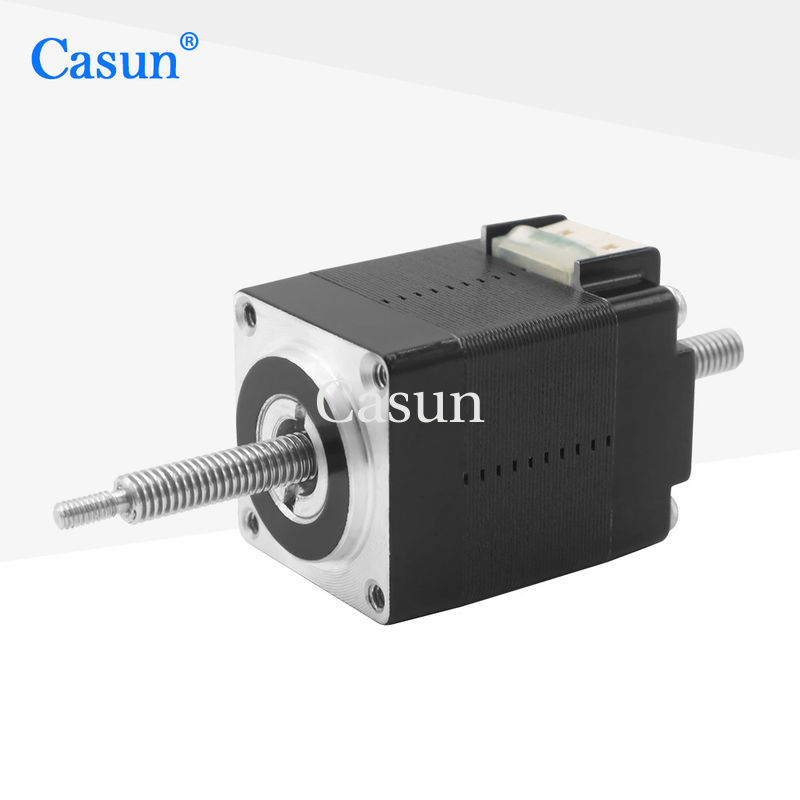

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots
NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 20SHD0302-59T1

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13-$13.5

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Educational Robots Captive Stepping Motor

,

15mN.m Captive Stepping Motor

Current:
0.5Amp
Holding Torque:
15mN.m
Steper Angle:
1.8degree
Phase:
2
Detent Torque:
2mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
0.5Amp
Holding Torque:
15mN.m
Steper Angle:
1.8degree
Phase:
2
Detent Torque:
2mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

Through pulse signal control, it is easy to achieve complex motion trajectories.

Even at low speeds, stepper motors can maintain high torque output, making them suitable for situations with high requirements for power and accuracy.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Operational for 12 years in China, serving over 800 clients

  • Supply “numerous international certifications” for advanced technology and electronics industry equipment.

  • Customizations on request

Dimensions

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.5Amp

Holding Torque



15mN.m

Resistance



5.1ohm

Inductance



1.5mH

Rotor Inertia



2g-cm²

Motor weight



0.08kg

Lead Screw



Tr3.35X0.6096

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots 1 NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots 2 NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots 3 NEMA 8 Non Captive Stepping Motor For 15mN.m Educational Robots 4





Please click the "Get  a quote" button below to tell us your requirements.
