Non Captive Stepper Motor
Created with Pixso.

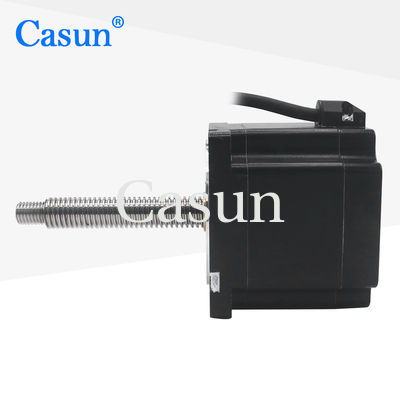

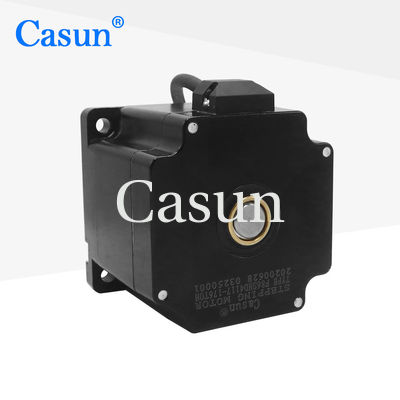

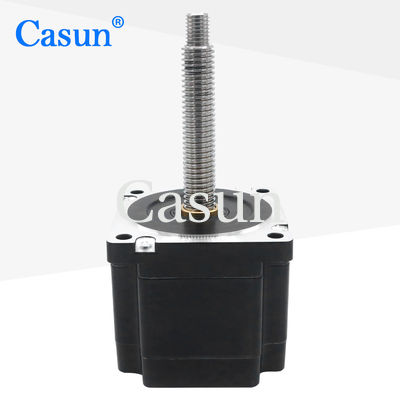

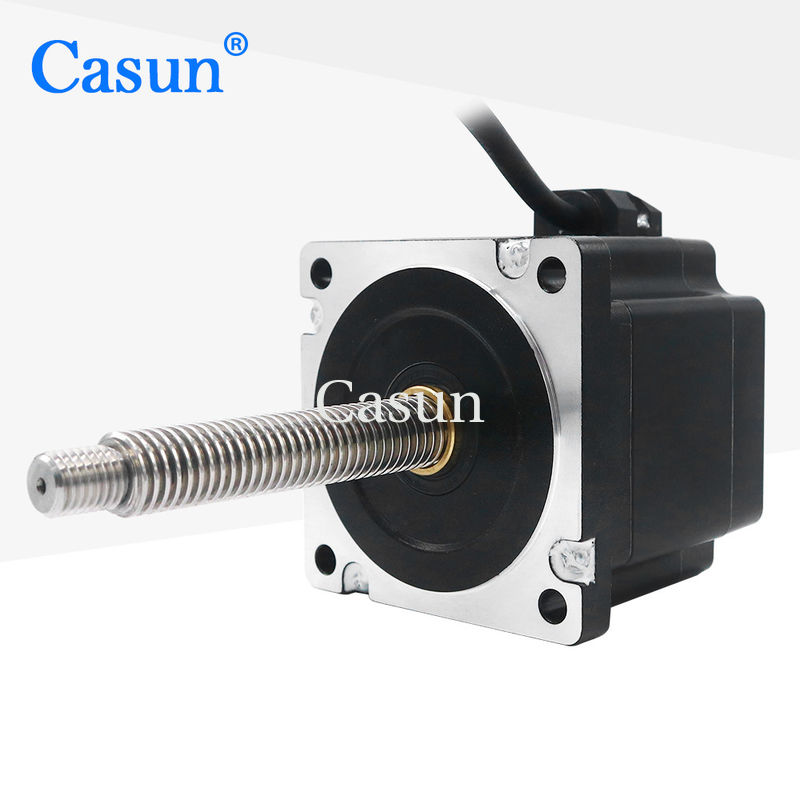

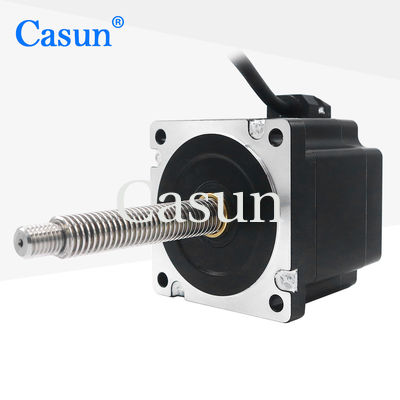

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

name

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof

Brand Name: Casun
Model Number: F86SHD4117-176TOH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
3.8N.M
Current:
1.3A
Motor Length:
76mm
Lead:
Tr15.88×2.54
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Waterproof NonCaptive Hybrid Linear Stepper Motor

,

Customization NonCaptive Hybrid Linear Stepper Motor

,

76mm NonCaptive Hybrid Linear Stepper Motor

Product Description

The 86mm Stepper motors can respond very quickly to commands, providing fast acceleration and deceleration, which is very useful for applications that require quick adjustment.

It has been widely used in industrial applications that require precision, stability, and fast motion.



Features:

  • Both high torque and accuracy

  • For electronic industrial equipment and high-tech industry equipment

  • We offer customizable services and warmly welcome contract manufacturing

  • Each model of our stepper motor is suitable for diverse applications

  • High torque and high precision







Motor Specifications



Step Angel

1.8 °

Fram Size

86 mm

Number of Phase

2 Phase

Rated Current

1.3 A

Holding Torque

3.8 N.m

Resistance

9.2 ohm

Inductance

71 mH

Rotor Inertia

1760 g-cm²

Motor weight

2.5 kg

Number of leads

4

Connection

Bipolar

Appearance

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 0

Dimensions

Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 2 Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 3 Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 4 Customization NEMA 34 NonCaptive Hybrid Linear Stepper Motor 76mm Body Waterproof 5



Please click the "Get a quote" button below to tell us your requirements.
