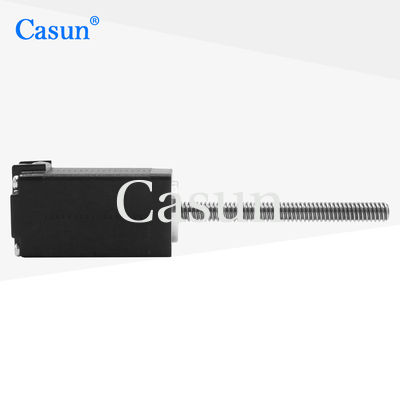

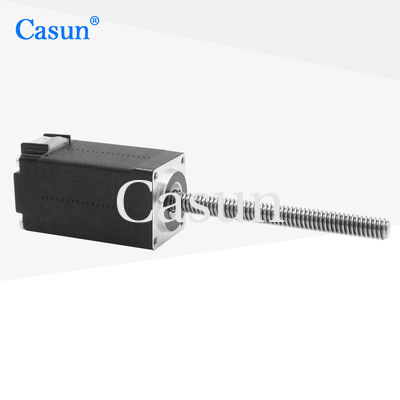

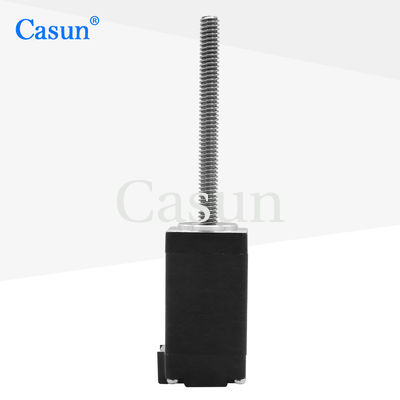

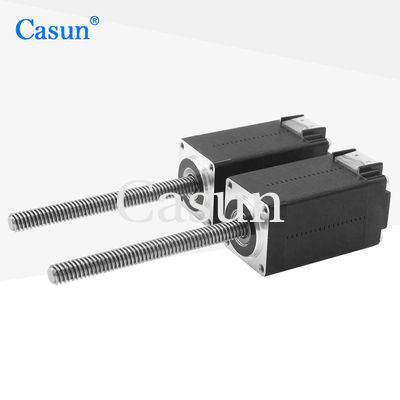

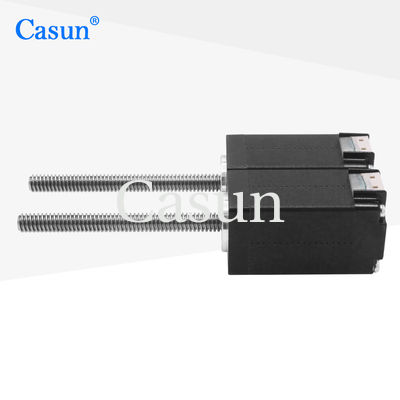

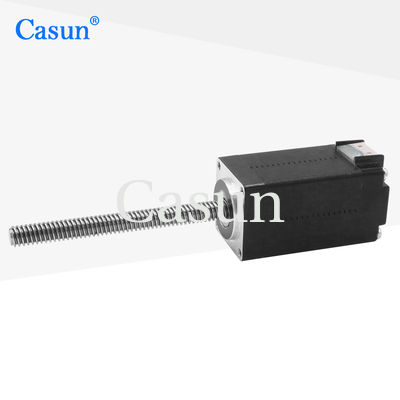

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment
Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment

Product Details

Place of Origin: China

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 20SHD0250-52NTV2

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $13-$13.5

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

32mN.m Non Captive Motor

,

4 wires Non Captive Motor

,

Nema 8 Non Captive Motor

Current:
0.5Amp
Step Angel:
1.8°
Lead Screw:
Tr5×2
Phase:
2
Motor Length:
38mm
Holding Torque:
32mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current:
0.5Amp
Step Angel:
1.8°
Lead Screw:
Tr5×2
Phase:
2
Motor Length:
38mm
Holding Torque:
32mN.m
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The stepper motor converts rotational motion into linear motion and achieves precise linear positioning through screws.

Precision positioning: such as laboratory equipment, optical equipment, precision measuring instruments, etc.



Features:

  • Contract-based manufacturing services are welcome

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • With 12 years of operation in China, we have served over 800 customers

  • Dealers are actively sought after!

Dimensions

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 0







Motor Specifications

Step Angel



1.8 °

Fram Size



20 mm

Number of Phase



2 Phase

Rated Current



0.6Amp

Holding Torque



32mN.m

Resistance



9.0 ohm

Inductance



3.2mH

Rotor Inertia



3.5g-cm²

Motor weight



0.08kg

Lead Screw



Tr5X2

Connection



Bipolar







Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12







Download



If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 1 Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 2 Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 3 Nema 8 20x20x38mm 1.8 Deg Non Captive Motor 32mN.m 4 Wires For Medical Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
