Mini Size Nema 8 Stepper Motor Factory 8HS13-0604S Customization

Mini Size Nema 8 Stepper Motor Factory 8HS13-0604S Customization

Brand Name:	Casun
Model Number:	20SHD0501-10
MOQ:	1pcs-10pcs
Price:	US $6.94 - 11.00/ Piece
Payment Terms:	L/C, D/A, T/T
Supply Ability:	100000pcs / month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Connector Type:

Plug In

Current:

0.6A

Detent Torque:

2.5mN.m

Holding Torque:

20mN.m

Inductance:

1.5mH

Length:

33mm

Name:

NEMA 8 Stepper Motor

Resistance:

6.5Ω

Rotor Inertia:

2.5g·cm²

Shaft Diameter:

5mm

Shaft Length:

10mm

Step Angle:

1.8°

Voltage:

3.9V

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

8HS13-0604S nema 8 stepper motor

Mini size nema 8 stepper motor

customization nema 8 stepper motor

Product Description

Mini Size Nema 8 Stepper Motor 8HS13-0604S

Hot sale micro stepping motor featuring 0.6A current rating and 20mN.m torque. This Nema 8 stepper motor is ideal for beauty machines, video conference equipment, and other compact applications requiring precise motion control.

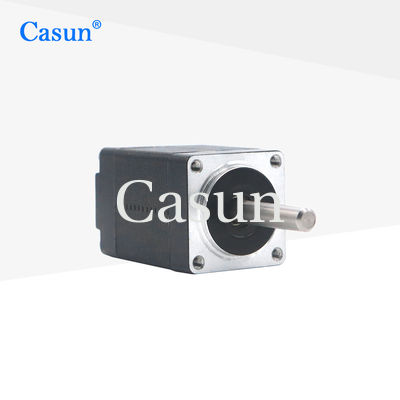

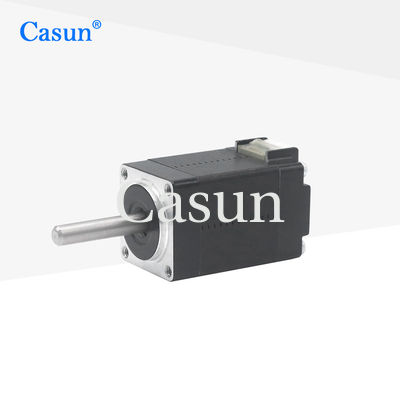

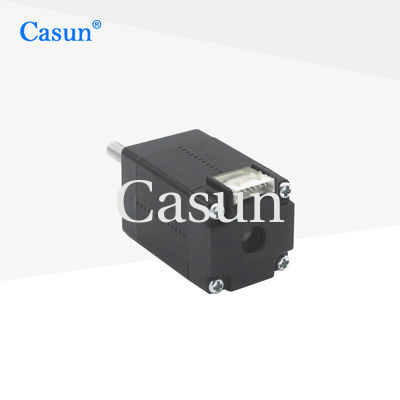

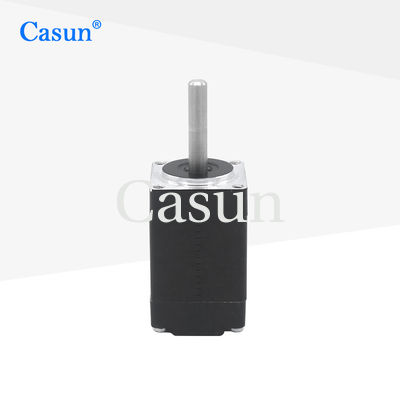

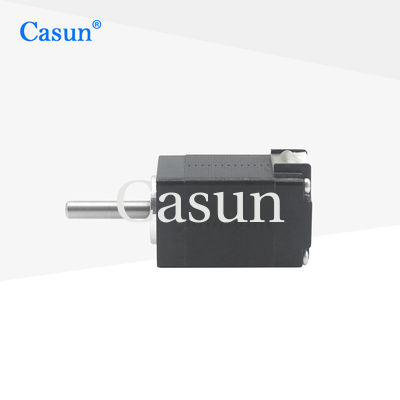

Appearance

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	20 mm
Number of Phase	2 Phase
Rated Current	0.6 A
Holding Torque	20 mN.m
Resistance	6.5 ohm
Inductance	1.5 mH
Rotor Inertia	2.5 g-cm²
Motor Weight	0.07 kg
Number of Leads	4
Connection	Bipolar

Torque Curves

Detailed torque performance curves available upon request.

Download

Technical documentation and specifications available for download.

Custom Motor Solutions

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to:

Special shafts and mechanical modifications
Custom winding parameters
Modified installation dimensions
Special requirement lead wires
Custom connectors and interfaces

Frequently Asked Questions

Who are we?

Based in Guangdong, China, we have been manufacturing stepper motors since 2011. Our products are sold globally with major markets including Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%). Our team consists of 51-100 professionals dedicated to motor manufacturing excellence.

How do we guarantee quality?

We maintain strict quality control through pre-production samples and final inspection before shipment to ensure every motor meets our high standards.

What products do we offer?

We specialize in Stepper Motors and BLDC Motors for various industrial applications.

Why choose us over other suppliers?

With over 11 years of specialized experience in stepper motor production, we offer proven expertise and reliable performance for your motion control needs.

What services do we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery
Accepted Payment Currency: USD, CNY
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal
Languages: English, Chinese, Japanese

Available Options

Encoder

Brake

Gearbox

Connector

Please click the "Get a quote" button below to tell us your specific requirements and receive a customized solution.
