282852mm Nema 11 Stepper Motor 0.67A Motors With CE ROHS ISO

282852mm Nema 11 Stepper Motor 0.67A Motors With CE ROHS ISO

Brand Name:	Casun
Model Number:	28SHD4501-20B
MOQ:	10PC
Price:	$8.64-$16.88
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

6.16V

Current:

0.67A

Holding Torque:

120mN.m

Brand:

Casun

Shaft Diameter:

4.5mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

Nema 11 Stepper Motor

0.67A Nema 11 Stepper Motor

Product Description

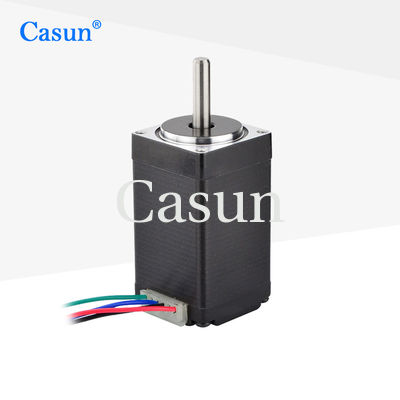

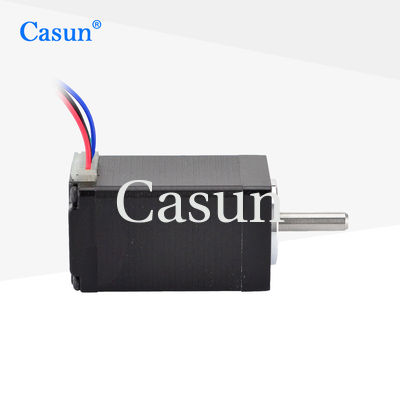

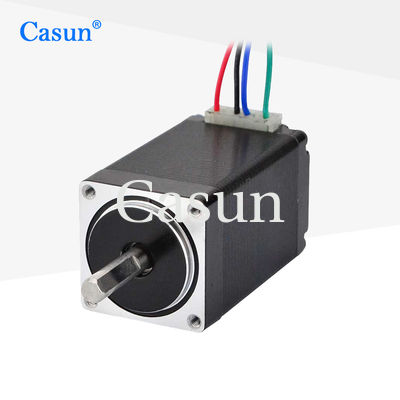

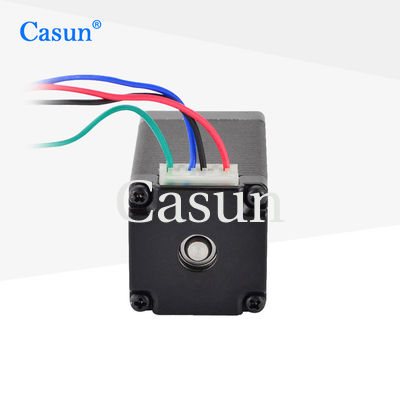

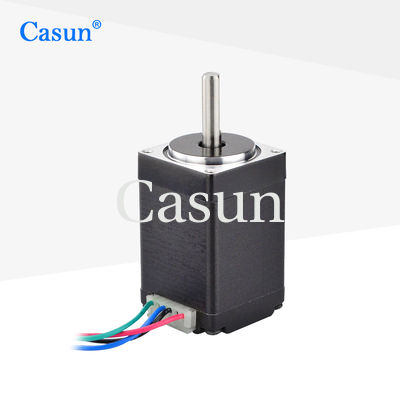

28×28×52mm Nema 11 Stepper Motor 0.67A Motors With CE ROHS ISO

NEMA 11 Stepper Motor, 28×28×52 mm, 0.67A, featuring CE, ROHS, and ISO certifications. This compact stepper motor offers precise bidirectional movement control through signal manipulation.

Key Features

Expert drivetrain solutions
Multiple international certifications
Professional manufacturing, development, and research
Custom alterations available upon request

Dimensions

Motor Specifications

Specification	Value
Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.67 Amp
Holding Torque	120 mN.m
Resistance	9.2 ohm
Inductance	7.2 mH
Rotor Inertia	18 g·cm²
Motor Weight	0.2 kg
Lead Wiring	4
Connection	Bipolar

Operating Specifications

Parameter	Specification
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from flange)
Max. Axial Force	10N

Available Submodels

Body Length	Diameter of Screw	Pitch	Length of Screw
20 mm	5, 8, 6.35	2, 1.27, 3.175, 6.35, 6.5, 3, 6.35, 8, 1, 2, 4, 8, 12	20-1000 mm
34 mm
40 mm
48 mm
60 mm

Available Options

Encoder

Brake

Gearbox

Shaft

Customization Services

If our standard motor cannot meet your requirements, we can customize the motor according to your specific needs. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, and more.

Get a Quote

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2011. Our primary markets include Domestic Market (63%), Western Europe (12%), North America (9%), and Eastern Asia (8%). Our office employs 51-100 people.

How can we guarantee quality?

We always provide pre-production samples before mass production and conduct final inspection before shipment to ensure quality standards.

What can you buy from us?

We specialize in Stepper Motors and BLDC Motors.

Why should you buy from us instead of other suppliers?

We have over 11 years of specialized experience in producing and selling stepper motors.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery. Accepted Payment Currency: USD, CNY. Accepted Payment Type: T/T, L/C, D/P D/A, PayPal. Languages Spoken: English, Chinese, Japanese.
