GUANGZHOU FUDE ELECTRONIC TECHNOLOGY CO.,LTD Company Profile
products
Home > products > Lead Screw Stepper Motor > 1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment

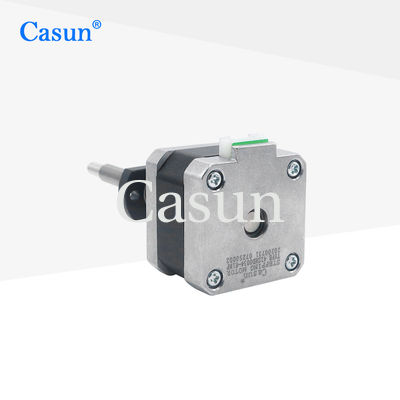

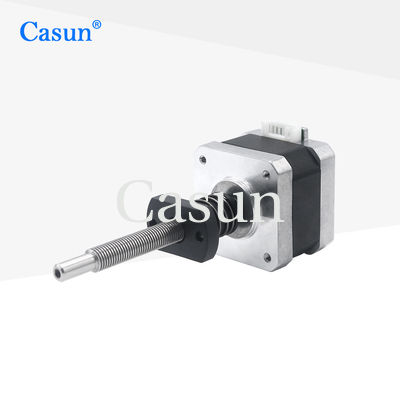

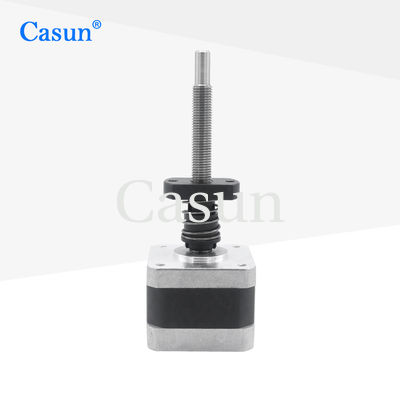

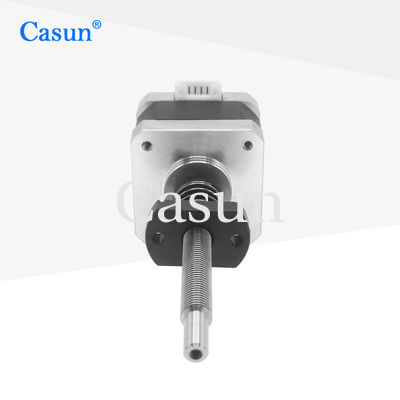

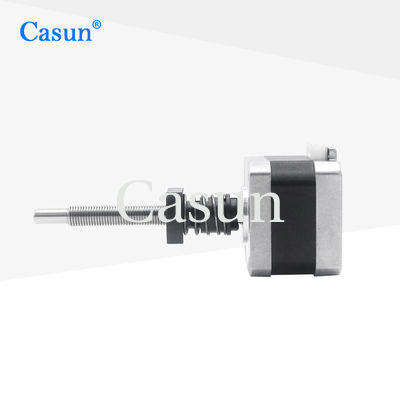

1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment
1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment

1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: 42SHD0034-81NP

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.68-$14

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

34mm Nema 17 Captive Stepper Motor

,

0.3N.m Nema 17 Captive Stepper Motor

Lead:
Tr8*1
Body:
34mm
Step Angle:
1.8 Degrees
Weight:
0.22kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Lead:
Tr8*1
Body:
34mm
Step Angle:
1.8 Degrees
Weight:
0.22kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The NEMA 17 screw stepper motor can provide very precise motion control, suitable for applications that require high-precision position control.

Through pulse signal control, it is easy to achieve complex motion trajectories.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Enjoy a ten-year warranty and purchase with confidence

  • Our engineers will be in touch within 48 hours to provide the best solution

  • We specialize in professional drivetrain solutions·

Dimensions

1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.28A

Holding Torque



300 mN.m

Resistance



5.0 hm

Inductance



6.2 mH

Rotor Inertia



38 g-cm²

Motor weight



0.22 kg

Lead Screw



Tr8X1

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment 1 1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment 2 1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment 3 1.8 Degree 2 Phase Nema 17 Captive Stepper Motor 34mm Body 0.3N.m For Medical Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
