Thin Stepper Motor NEMA 11 Ultraflat With Gear 0.5A 28289.5mm For SMT Feeder

Thin Stepper Motor NEMA 11 Ultraflat With Gear 0.5A 28289.5mm For SMT Feeder

Brand Name:	Casun
Model Number:	P28SHD4610-2A
MOQ:	1PC
Price:	$9.68-13.46
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8degree

Phase:

Rated Voltage:

1.2V

Rate Current:

0.5A

Holding Torque:

15mN.m

Detent Torque:

2mN.m

Weight:

30g

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

0.5A Thin Stepper Motor

Ultraflat Thin Stepper Motor

NEMA 11 Thin Stepper Motor

Product Description

Thin Stepper Motor NEMA 11 Ultraflat With Gear 0.5A 28×28×9.5mm For SMT Feeder

Our lightweight design reduces equipment weight, creating a more streamlined overall structure. This compact, low-profile stepper motor offers easy integration while delivering high torque output, precision performance, and quiet operation.

Key Features

Bipolar or unipolar versions available
Expert engineering support within 48 hours for optimal solutions
Available in single or double shaft versions
Each model adaptable to various application scenarios
Customizations available upon request

Dimensions

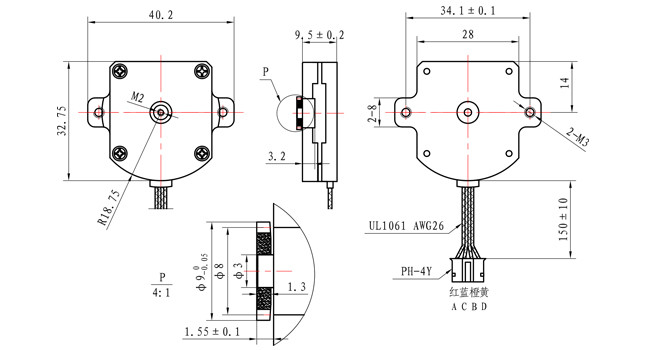

NEMA 11 stepper motor dimensional diagram showing 28×28×9.5mm ultraflat design

Motor Specifications

Step Angle	1.8°
Frame Size	28 mm
Number of Phase	2 Phase
Rated Current	0.5A
Holding Torque	15 mN.m
Resistance	2.4 Ω
Inductance	0.53 mH
Rotor Inertia	2 g·cm²
Motor Weight	0.02 kg
Number of Leads	4
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ω at 500 VDC
Dielectric Strength	500 VDC for 1 min

Available Models

Model	Motor Length	Current	Holding Torque
P28SHD4611	9.5mm	0.5A	16mN.m
P28SHD4701	10.6mm	0.5A	20mN.m
P28SHD4750	13-15mm	0.5A	25mN.m
P28SHD4950	17.9mm	0.5A	35mN.m

Available Options

Encoder

Brake

Gearbox

Shaft

Custom Solutions Available

If our standard motors don't meet your requirements, we can customize motors to your exact specifications. Customization options include special shafts, winding parameters, installation dimensions, specialized lead wires, connectors, and more.

Frequently Asked Questions

Who are we?

Based in Guangdong, China, we've been manufacturing since 2011. We serve domestic markets (63%) and international customers including Western Europe (12%), North America (9%), and Eastern Asia (8%). Our team consists of 51-100 professionals.

How do we guarantee quality?

We provide pre-production samples before mass production and conduct final inspections before shipment to ensure consistent quality.

What products do we offer?

We specialize in Stepper Motors and BLDC Motors.

Why choose us over other suppliers?

With over 11 years of specialized experience in stepper motor production, we bring extensive expertise and reliability to every project.

What services do we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW, Express Delivery) and payment methods (T/T, L/C, D/P D/A, PayPal) in USD or CNY. Our team communicates in English, Chinese, and Japanese.

Ready to Get Started?

Please click the "Get a quote" button below to share your specific requirements with our engineering team.
