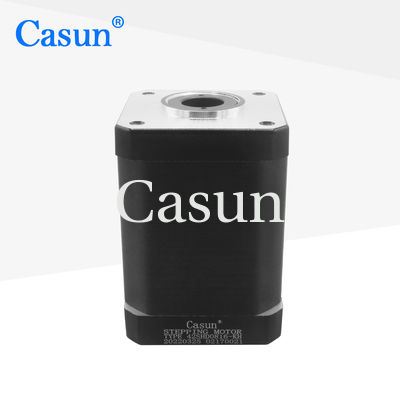

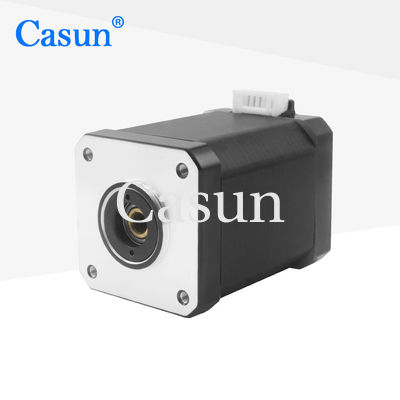

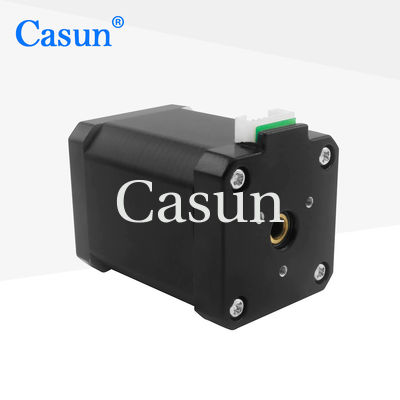

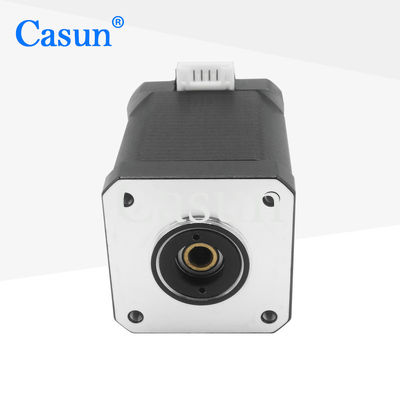

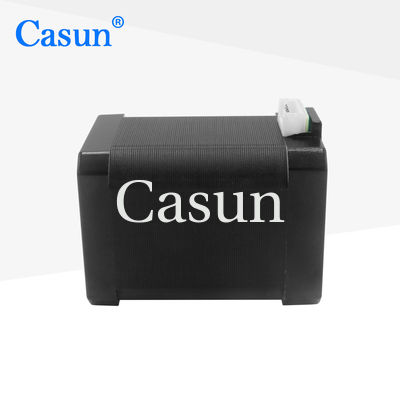

3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System
  • 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System

3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System

Place of Origin China
Brand Name Casun
Certification CE,ROHS,ISO
Model Number 42SHD0816-KH
Product Details
Steper Angle:
1.8 Degree
Phase:
2
Rated Voltage:
5.2V
Current:
3.0A
Holding Torque:
0.8Nm
Payment & Shipping Terms
Minimum Order Quantity
1PC
Price
$15-$18
Packaging Details
Carton:38x29xc14m
Delivery Time
7-15 days
Payment Terms
D/A, T/T, L/C, D/P
Supply Ability
40000+PCS+Month
Product Description

Through pulse signal control, it is easy to achieve complex motion trajectories.

The screw stepper motor directly provides linear motion without the need for additional transmission mechanisms, improving motion accuracy.



Features:

  • Professional drivetrain solution specialist

  • High torque and precision guaranteed

  • Available in single or double shaft versions

  • With 12 years of experience in China, we have served over 800 customers

  • Customizations on request

Dimensions

3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System 0

Motor Specifications





Step Angel



1.8 °



Fram Size



42 mm



Number of Phase



2 Phase



Rated Current



3.0Amp



Holding Torque



800mN.m



Resistance



1.4ohm



Inductance



2.8mH



Rotor Inertia



102g-cm²



Motor weight



0.55kg



Lead Screw



-



Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

FAQ

1. who are we?

We are based in Guangdong, China, start from 2011,sell to Domestic Market(63.00%),Western Europe(12.00%),North America(9.00%),Eastern Asia(8.00%),Northern Europe(2.00%),Eastern Europe(00.00%),Southeast Asia(00.00%),Oceania(00.00%),Mid East(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 51-100 people in our office.



2. how can we guarantee quality?

Always a pre-production sample before mass production;

Always final Inspection before shipment;



3.what can you buy from us?

Stepper Motor,BLDC Motor



4. why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.



5. what services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;

Accepted Payment Currency:USD,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,,PayPal;

Language Spoken:English,Chinese,Japanese



Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System 1 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System 2 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System 3 3.0A Non Captive Stepper Motor NEMA 17 for Precision Positioning System 4
