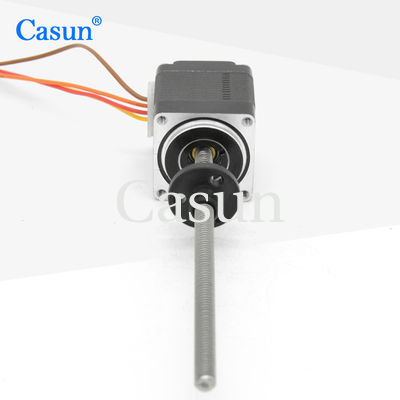

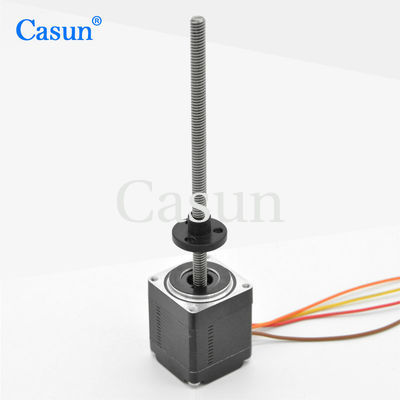

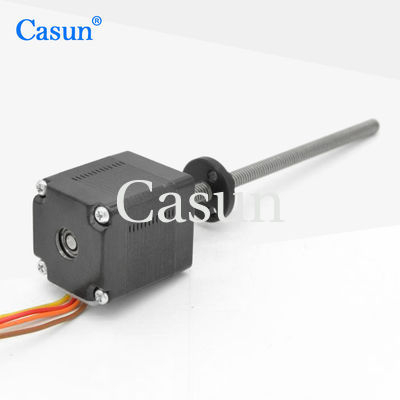

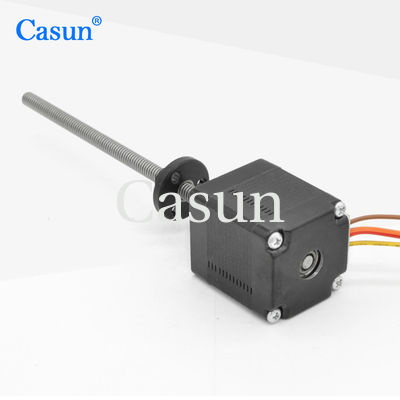

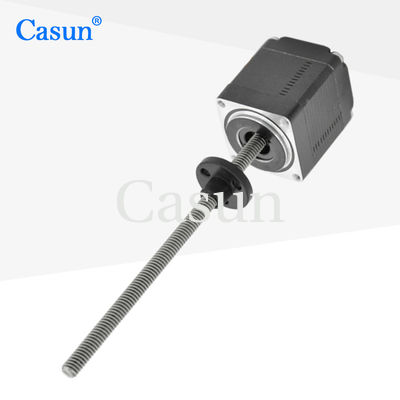

NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment

name

NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment

Brand Name: Casun
Model Number: 28SHD0202-110NK
MOQ: 1PC
Price: $9.94-$12.8
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Body:
32mm
Current:
0.67Amp
Holding Torque:
60mN.m
Voltage:
3.75 VDC
Packaging Details:
Carton:38x29xc14m
Highlight:

28mm Non Captive Stepper Motor

,

NEMA 11 Non Captive Stepper Motor

,

Beauty Equipment Non Captive Stepper Motor

Product Description

The screw design reduces mechanical friction and backlash, making the system run more smoothly.

Widely used in various fields such as medical equipment, semiconductor processing, valve control, X-Y workbench, handheld instruments, etc.



Features:

  • Bipolar or unipolar versions available

  • Dealers are actively sought!

  • We offer customized services and accept contract manufacturing

  • Each model of our stepper motor is suitable for various applications

  • Expertise in research, development, and manufacturing





Motor Specifications



Step Angel



 1.8 °

Fram Size



 28mm

Number of Phase



 2 Phase

Rated Current



 0.67Amp

Holding Torque



 60 mN.m

Resistance



 5.6 ohm

Inductance



 3.4 mH

Rotor Inertia



 9g-cm²

Motor weight



 0.12kg

Lead Screw



 Tr5X8

Connection



Bipolar

Dimensions

NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment 0


















Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels






Download





If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment 1 NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment 2 NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment 3 NEMA 11 Non Captive Stepper Motor Micro Linear Actuator 28mm Body For Beauty Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
