Ball Screw Stepper Motor
Created with Pixso.

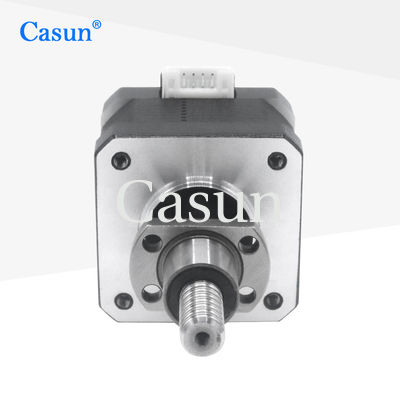

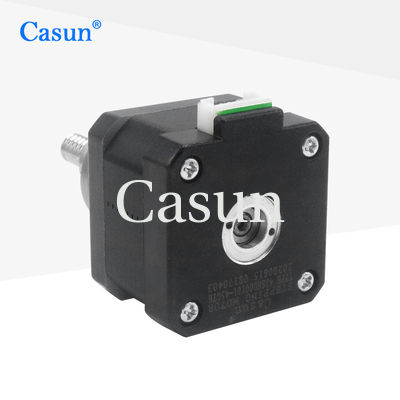

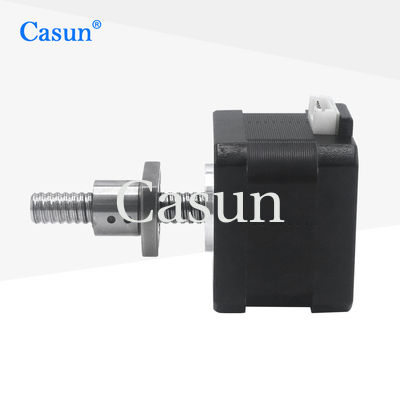

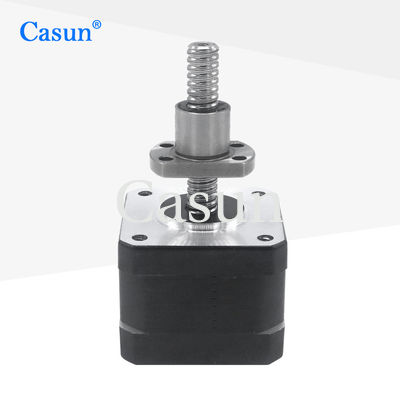

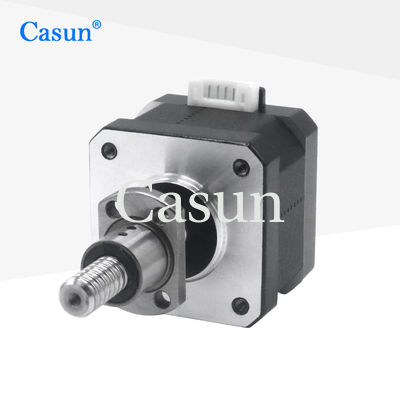

Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead

name

Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead

Brand Name: Casun
Model Number: 42SHD00101-45GTH
MOQ: 1PC
Price: $9.68-$14
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROSH,ISO
Screw Length:
45mm
Holding Torque:
320mN.m
Phase:
2
Rate Current:
1.68A
Body:
34mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

4-lead Nema 17 Ball Screw

,

34mm bady Nema 17 Ball Screw

,

0.32Nm Nema 17 Ball Screw

Product Description

Directly connected to the output shaft of the stepper motor, without the need for additional drive belts or gears, reducing complexity and transmission errors.

Precision machining, automated assembly lines, laboratory equipment, medical equipment, 3D printers, and CNC machine tools.





Features:

  • Bipolar or unipolar versions available

  • Simple and compact structure design for easy installation and maintenance.

  • Available in single or double shaft versions

  • High torque and high precision

  • We provide custom services and undertake contract manufacturing

Dimensions

Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead 0







Motor Specifications



Step Angel



1.8 °

Fram Size



42 mm

Number of Phase



2 Phase

Rated Current



1.68A

Holding Torque



320 mN.m

Resistance



1.5 hm

Inductance



2.5 mH

Rotor Inertia



38 g-cm²

Motor weight



0.23 kg

Lead Screw



Ball Screw SFK0802

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves









Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A







Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead 1 Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead 2 Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead 3 Nema 17 Ball Screw Stepper Motor 34mm Bady 0.32Nm For CNC 3D Printer 4-lead 4





Please click the "Get  a quote" button below to tell us your requirements.
