Home > products > Lead Screw Stepper Motor > Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment

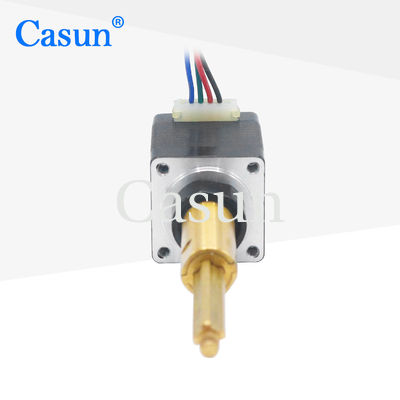

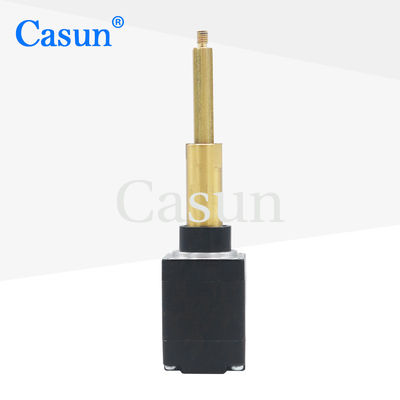

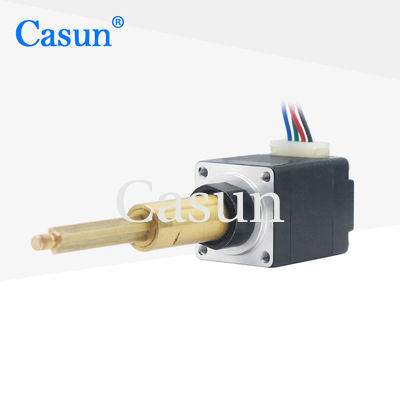

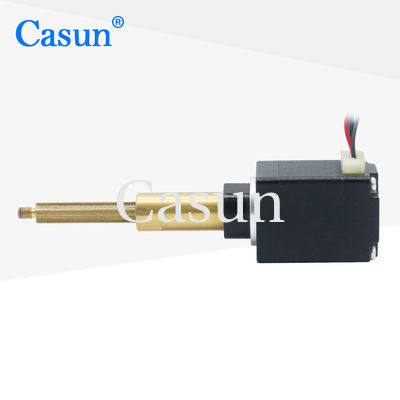

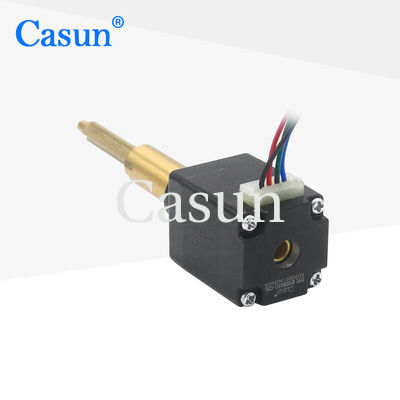

Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment
Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment

Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: B20SHD4381-C25L

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $22.94 - 32.94

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

Beauty Equipment Linear Stepper Motor

,

4 wires Linear Stepper Motor

,

20x20x27.5mm Linear Stepper Motor

Color:
Black
Current:
0.6Amp
Holding Torque:
0.5Nat600pps
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.6Amp
Holding Torque:
0.5Nat600pps
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

The linear push rod stepper motor directly converts rotational motion into linear motion, improving mechanical efficiency.

Widely used in various fields such as automated production lines, precision machine tools, medical equipment, scientific research instruments, etc.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Each model of stepper motor is designed for different applications

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • Customizations on request

Dimensions

Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment 0







Motor Specifications



Step Angel



1.8 °

Fram Size



20mm

Number of Phase



2 Phase

Rated Current



0.6Amp

Holding Torque



0.5kg at 600pps

Resistance



11.5ohm

Inductance



3.50mH

Rotor Inertia



6g-cm²

Motor weight



0.2kg

Lead



25.4mm

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm
 		 5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment 1 Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment 2 Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment 3 Nema 8 20x20x27.5mm 1.8 Deg Linear Stepper Motor 4 Wires For Beauty Equipment 4





Please click the "Get  a quote" button below to tell us your requirements.
