Home > products > Non Captive Stepper Motor > Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument

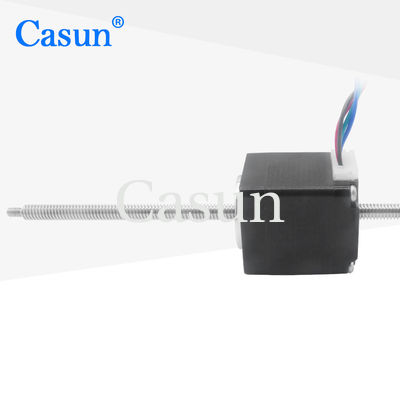

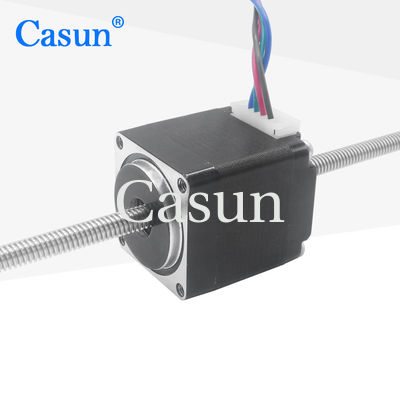

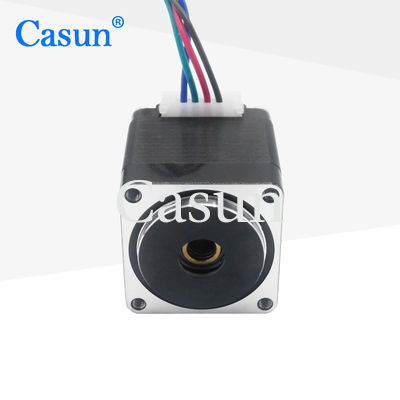

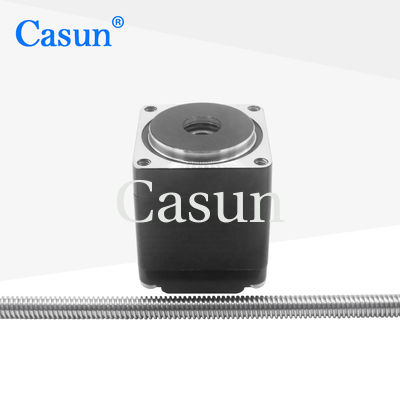

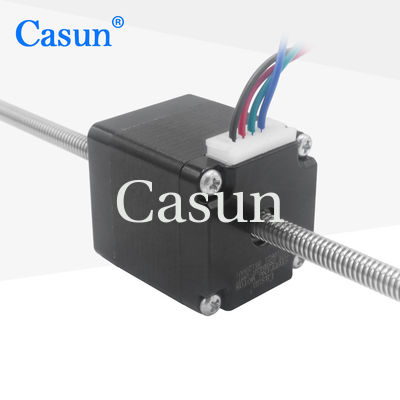

Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 28SHD4207-188TT

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $9.94-$15

Packaging Details: Carton:38x29xc14m

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price
Product Details
Highlight:
Color:
Black
Current:
0.8Amp
Holding Torque:
80mN.m
Lead Screw:
Tr5×2
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Color:
Black
Current:
0.8Amp
Holding Torque:
80mN.m
Lead Screw:
Tr5×2
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

No feedback system is required, which simplifies the design and control system, reduces costs and complexity.

Capable of providing reliable linear motion in various applications.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • We provide customized services and engage in contract manufacturing

  • CE and RoHS approved

  • Distributors are sought after!

Dimensions

 Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 0







Motor Specifications



Step Angel



1.8 °

Fram Size



28mm

Number of Phase



2 Phase

Rated Current



0.8Amp

Holding Torque



80mN.m

Resistance



5.8ohm

Inductance



4.1mH

Rotor Inertia



9g-cm²

Motor weight



0.12kg

Lead Screw



Tr5X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels



Model Holding Torque Step Angle Motor Length Type of Shaft Rated Current
42SHD4950 0.13N.m 1.8° 20mm D Shaft-20mm 1.0A
42SHD4003 0.26N.m 1.8° 34mm D Shaft-20mm 0.4A
42SHD0261 0.45N.m 1.8° 40mm D Shaft-20mm 1.68A
42SHD4425 0.59N.m 1.8° 48mm D Shaft-24mm 2.0A
42SHD4813 0.8N.m 1.8° 60mm D Shaft-24mm 2.1A





Body Length Diameter of Screw Pitch Length of Screw
20 mm

34 mm

40 mm

48 mm

60 mm


5 2 20-1000 mm
8
6.35 1.27
3.175
6.35
6.5 3
6.35
8 1
2
4
8
12



Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 1 Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 2 Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 3 Non Captive Nema 11 Stepper Motor 1.8 Degrees 28*28*33mm 0.8A for Precision Instrument 4





Please click the "Get  a quote" button below to tell us your requirements.
