products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Non Captive Stepper Motor
Created with Pixso.

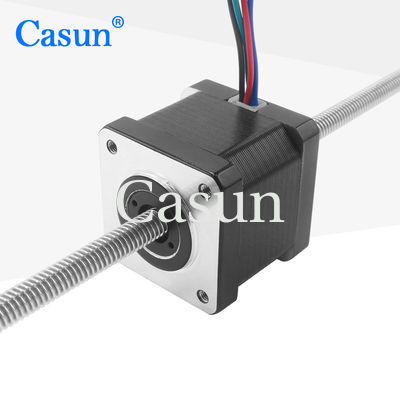

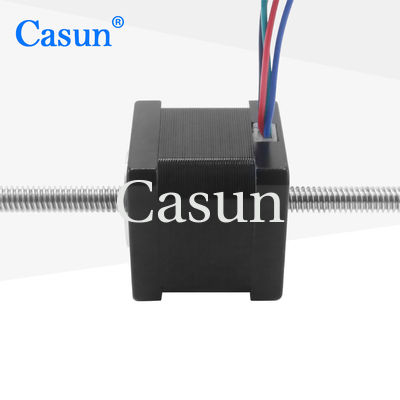

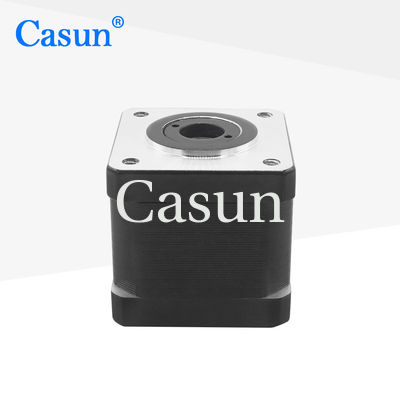

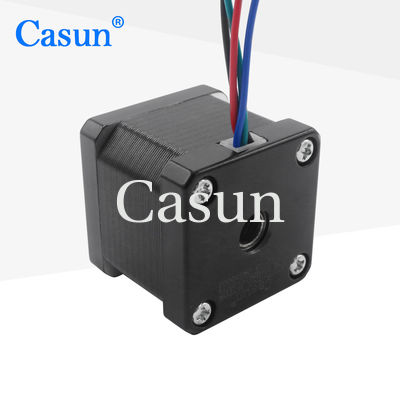

35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting

name

35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting

Brand Name: Casun
Model Number: P35SHD4150-257T4
MOQ: 1PC
Price: $9.68-$16
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Current Per Phase:
1.0 A
Rated Voltage:
3.5 V
Lead:
Tr6.35×2.4384
Number Of Phases:
2
Packaging Details:
Carton:38x29xc14m
Highlight:

2 Phase Non Captive Stepping Motor

,

1.5A Non Captive Stepping Motor

,

Srage Lighting Non Captive Stepping Motor

Product Description

The NEMA 14 stepper motor is also relatively lightweight, making it easy to move and install.

To lessen vibration and produce a greater step resolution, use with a microstepping driver.



Features:

  • Bipolar or unipolar versions available

  • Professional drivetrain solution specialist

  • Available in single or double shaft versions

  • Our engineers will contact you within 48 hours to provide the best solution

  • Professional research and development manufacturing

Dimensions

35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.0A

Holding Torque



190 mN.m

Resistance



3.5 hm

Inductance



3.6 mH

Rotor Inertia



20 g-cm²

Motor weight



0.18 kg

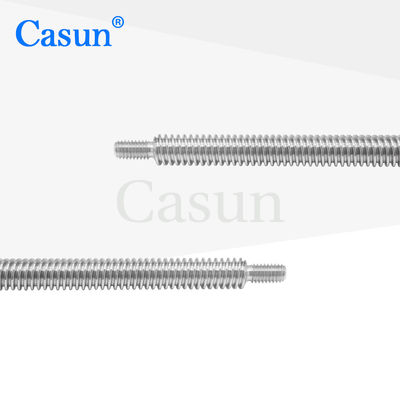

Lead Screw



Tr6.35X2.4384

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Submodels

Model Holding Torque Step Angle Length Type of Shaft Rated Current
35SHD0307-20 80mN.m 1.8° 20mm Round Shaft
20mm		 0.4A
35SHD0001-20 100mN.m 1.8° 26mm Round Shaft
20mm		 0.4A
35SHD0102-20B 150mN.m 1.8° 34mm D Shaft-20mm 0.75A
35SHD0801-20B 280mN.m 1.8° 40mm D Shaft-20mm 0.5A



Body Length Diameter of Screw Pitch Length of Screw
20 mm

26 mm

34 mm

40 mm

50 mm
 		 5 2 20-1000 mm
4
5.56 9.7536
6.35 6.35
6.5 3
8 2
M5 1.6


Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting 1 35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting 2 35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting 3 35*35*34mm 2 Phase Nema 14 Non Captive Stepping Motor 1.5A for Srage Lighting 4





Please click the "Get  a quote" button below to tell us your requirements.
