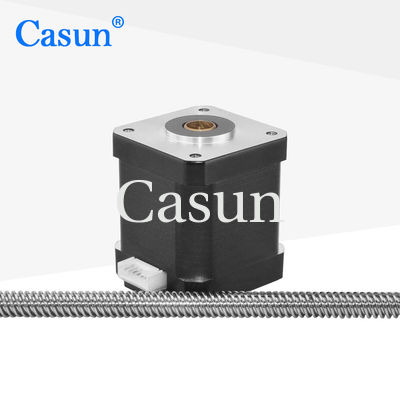

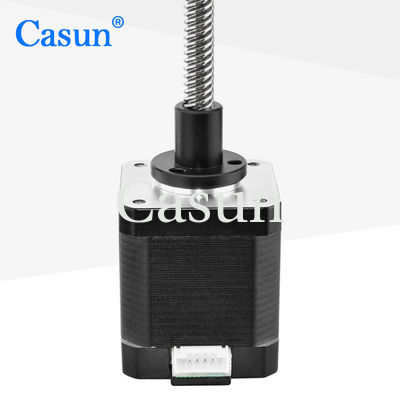

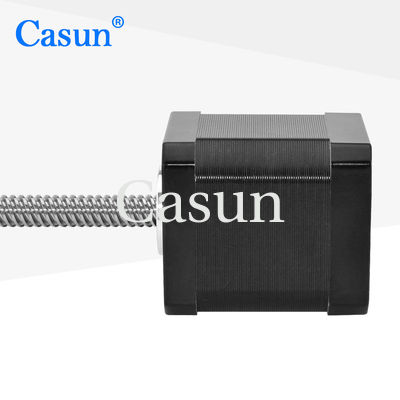

1.8 Degree 2 Phase 12V Hybrid Nema 17 Tr8*2 Non Captive Stepper Motor 48mm Body

1.8 Degree 2 Phase 12V Hybrid Nema 17 Tr8*2 Non Captive Stepper Motor 48mm Body

Brand Name:	Casun
Model Number:	42SHD0410-300NT
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

12V

Current:

0.4A

Holding Torque:

0.45Nm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

2 Phase Non Captive Stepper Motor

12V Non Captive Stepper Motor

Product Description

1.8 Degree 2 Phase 12V Hybrid Nema 17 Tr8*2 Non Captive Stepper Motor 48mm Body

Directly drive the load without intermediate transmission components such as gears or belts. The external drive screw stepper motor has a compact structure, which can save space.

Key Features

Professional drivetrain solution specialist
High torque and precision guaranteed
Various global accreditations for machinery in high-tech and electronics sectors
Specialists in professional drivetrain solutions
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	0.4A
Holding Torque	0.45N.m
Resistance	30Ω
Inductance	45mH
Rotor Inertia	72g·cm²
Motor Weight	0.38kg
Lead Screw	-
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100MΩ at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Submodels

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Available Options

Encoder

Brake

Gearbox

Shaft

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.

How can we guarantee quality?

Always a pre-production sample before mass production; Always final inspection before shipment.

What can you buy from us?

Stepper Motor, BLDC Motor

Why should you buy from us not from other suppliers?

We are specialized in producing and selling stepper motors for more than 11 years.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery; Accepted Payment Currency: USD, CNY; Accepted Payment Type: T/T, L/C, D/P D/A, PayPal; Language Spoken: English, Chinese, Japanese
