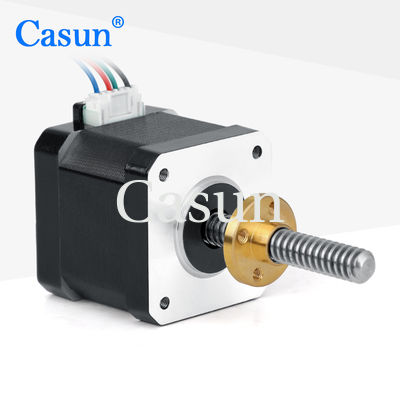

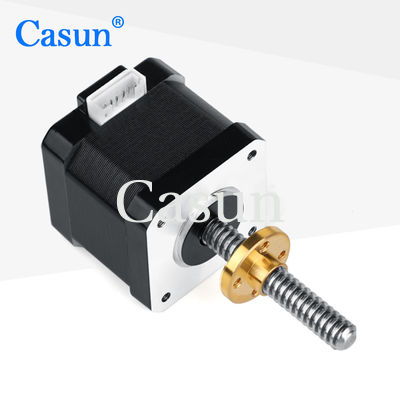

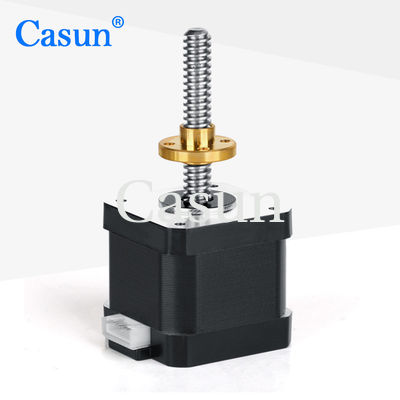

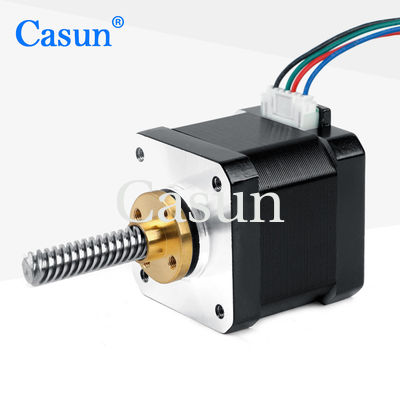

Lead Screw NEMA 17 Stepper Motor 24V 40mm bady with Tr8×12 for 3D Printer Accessories

Lead Screw NEMA 17 Stepper Motor 24V 40mm bady with Tr8×12 for 3D Printer Accessories

Brand Name:	Casun
Model Number:	42SHD0238-50ND
MOQ:	1PC
Price:	$15-$18
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE,ROHS,ISO

Steper Angle:

1.8 Degree

Phase:

Rated Voltage:

24V

Current:

1.0A

Holding Torque:

0.45Nm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:38x29xc14m

Highlight:

3D Printer Lead Screw Stepper Motor

24V Lead Screw Stepper Motor

40mm Lead Screw Stepper Motor

Product Description

Lead Screw NEMA 17 Stepper Motor 24V 40mm Body with Tr8×12 for 3D Printer Accessories

The mechanical advantage of screw transmission can amplify the output torque of the motor, enabling it to drive larger loads. High precision control in fields such as medical equipment, automation equipment, and precision machining.

Key Features

Professional drivetrain solution specialist
High torque and precision guaranteed
Various global accreditations for machinery in high-tech and electronics sectors
Every stepper motor model is adaptable to various applications
Customizations on request

Dimensions

Motor Specifications

Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.0 Amp
Holding Torque	0.45 N.m
Resistance	5.0 ohm
Inductance	10 mH
Rotor Inertia	57 g-cm²
Motor Weight	0.3 kg
Connection	Bipolar

Operating Specifications

Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02 Max. (450g-load)
Shaft Axial Play	0.08 Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13 N.m	1.8°	20 mm	D Shaft-20mm	1.0 A
42SHD4003	0.26 N.m	1.8°	34 mm	D Shaft-20mm	0.4 A
42SHD0261	0.45 N.m	1.8°	40 mm	D Shaft-20mm	1.68 A
42SHD4425	0.59 N.m	1.8°	48 mm	D Shaft-24mm	2.0 A
42SHD4813	0.8 N.m	1.8°	60 mm	D Shaft-24mm	2.1 A

Available Options

Encoder

Brake

Gearbox

Shaft

Custom Solutions Available

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
