Home > products > Hybrid Stepper Motor > Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

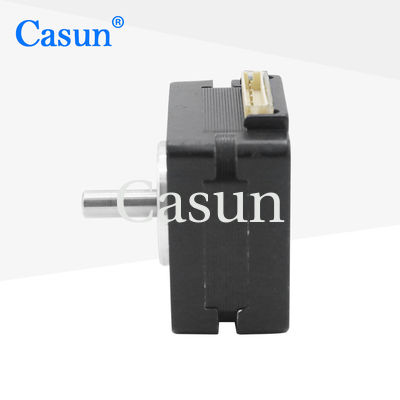

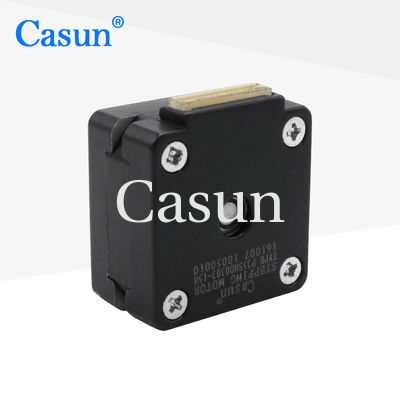

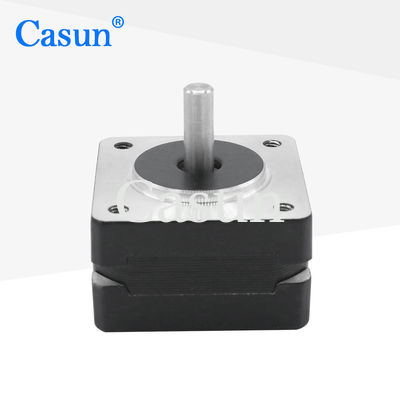

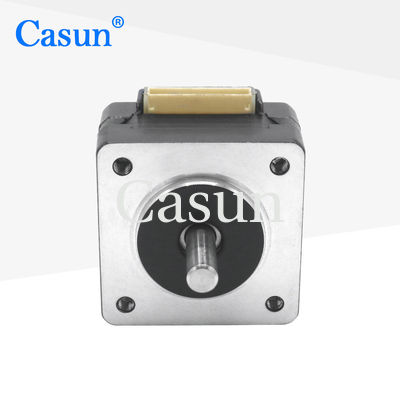

Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting
Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROSH,ISO

Model Number: P35SHD0303-15H

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $4.14-$6.98

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

0.4A Nema 14 Stepper Motor

,

2 Phase Nema 14 Stepper Motor

,

Nema 14 35x35x20mm Stepper Motor

Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.4A
Motor Length:
20mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
60mN.m
Current:
0.4A
Motor Length:
20mm
Shaft:
Round Shaft 15mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

NEMA 14 stepper motors have high efficiency and can fully utilize electrical energy for conversion and movement.

Its performance and cost advantages make it the preferred motor for many applications.

Features:

  • Bipolar or unipolar versions available

  • High accuracy and torque

  • Available in single or double shaft versions

  • Each model of stepper motor can be suitable for different scenarios

  • High torque and high precision





Motor Specifications

Step Angel

1.8 °

Fram Size

35 mm

Number of Phase

2 Phase

Rated Current

0.4 A

Holding Torque

60 mN.m

Resistance

22 ohm

Inductance

15 mH

Rotor Inertia

10 g-cm²

Motor weight

0.09 kg

Number of leads

4

Connection

Bipolar





Appearance



Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting 0

Dimensions

Stepper Motor Nema 14 35x35x20mm 1.8 Degree 2 Phase Hybrid 0.4A for Stage Lighting 1





Torque Curves



















Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Connector

Please click the "Get  a quote" button below to tell us your requirements.
