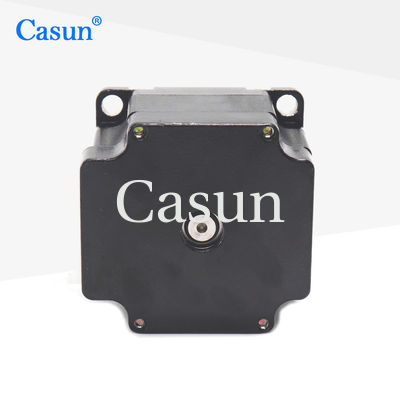

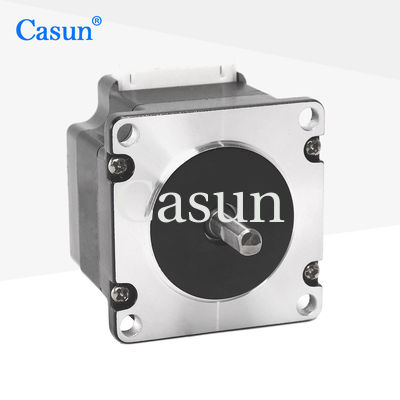

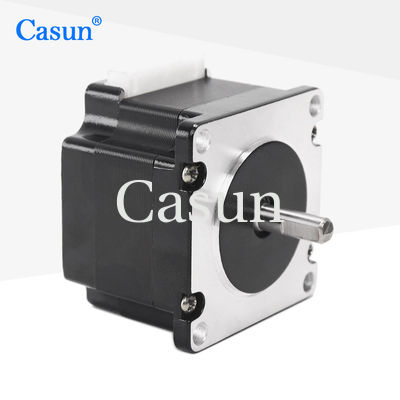

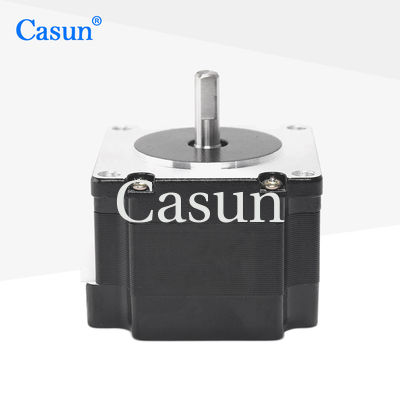

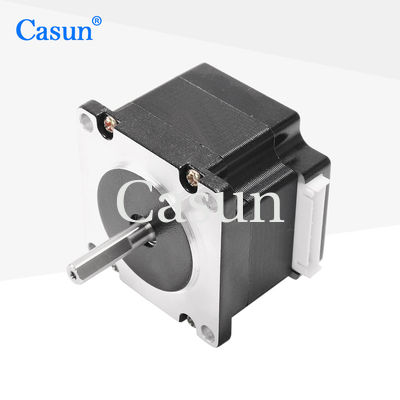

Nema 23 4 Wires Stepper Motor Bipolar 57×57×41mm For Medical Devices

Nema 23 4 Wires Stepper Motor Bipolar 57×57×41mm For Medical Devices

Brand Name:	Casun
Model Number:	57SHD0043-21B
MOQ:	1PC
Price:	$3.14-$5
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Step Angel:

1.8°

Holding Torque:

0.75N.m

Current:

1.5A

Motor Length:

41mm

Shaft:

Milling Flat Shaft 21mm Length

Shaft Diameter:

6.35mm

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Packaging Details:

Carton:36x29x14cm

Highlight:

Bipolar Nema 23 Stepper Motor

57×57×41mm Nema 23 Stepper Motor

4 Wires Nema 23 Stepper Motor

Product Description

Nema 23 4 Wires Stepper Motor Bipolar 57×57×41mm For Medical Devices

NEMA 23 stepper motors support multiple driving modes, such as full step, half step, and micro step. Suitable for various industries and fields, such as industrial automation, robotics, 3D printing, medical devices, etc.

Key Features

High torque and high precision
Deliver various global accreditations for machinery in the high-tech and electronics sectors
Experts in drivetrain solutions
12-year history in China with over 800 clients served
Our engineers will contact you within 48 hours to offer the optimal solution

Motor Specifications

Step Angle	1.8°
Frame Size	57 mm
Number of Phase	2 Phase
Rated Current	1.5 A
Holding Torque	0.75 N.m
Resistance	3.0 ohm
Inductance	7.3 mH
Rotor Inertia	135 g-cm²
Motor Weight	0.42 kg
Number of Leads	4
Connection	Bipolar

Appearance

Dimensions

Operating Specifications

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20°C to 50°C

Storage Temperature: -20°C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130°C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Available Models

Model	Holding Torque	Step Angle	Length	Type of Shaft	Rated Current
57SHD4013-21B	0.6 N.m	1.8°	41 mm	D Shaft-21mm	1.0 A
57SHD4415-21B	1.1 N.m	1.8°	54 mm	D Shaft-21mm	3.0 A
57SHD4816-21B	2.0 N.m	1.8°	76 mm	D Shaft-21mm	3.0 A
57SHD4913-21B	2.5 N.m	1.8°	83 mm	D Shaft-21mm	3.0 A
57SHD4934-20B	3.0 N.m	1.8°	100 mm	D Shaft-20mm	3.0 A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Available Options

Encoder

Brake

Gearbox

Shaft
