products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

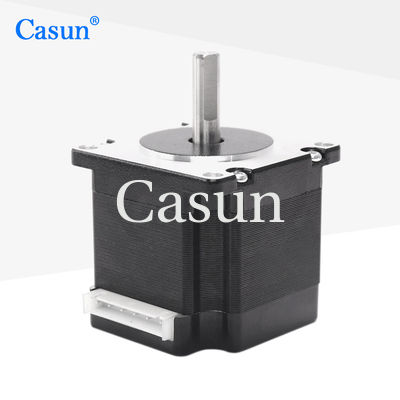

57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation

name

57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation

Brand Name: Casun
Model Number: 57SHD0209-30B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
820mN.m
Current:
0.88A
Motor Length:
50mm
Shaft:
Milling Flat Shaft 30mm Length
Shaft Diameter:
6.35mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

0.82N.m Stepper Motor

,

Industrial Automation Stepper Motor

,

0.88A Stepper Motor

Product Description

In the field of industrial automation, stepper motors can be used to drive and control various equipment, improving production efficiency and product quality.

The higher torque output enables it to drive heavier loads, such as robotic arms, conveyor belts, etc.



Features:

  • High torque and high precision

  • accept contract manufacturing

  • Our engineers will reach out within 48 hours to offer the optimal solution

  • Specialists in professional drivetrain solutions

  • Professional research and development manufacturing





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.88 A

Holding Torque

820 mN.m

Resistance

7.0 ohm

Inductance

22 mH

Rotor Inertia

220 g-cm²

Motor weight

0.55 kg

Number of leads

4

Connection

Bipolar

Appearance

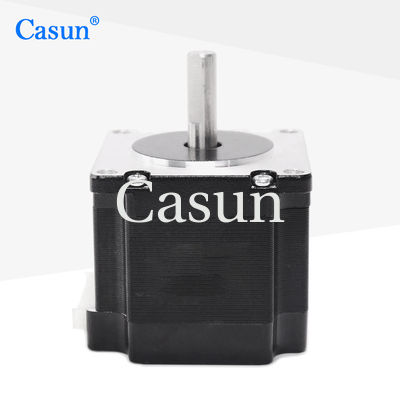

57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 0

Dimensions

57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

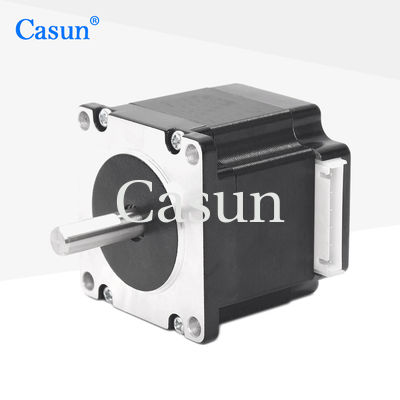

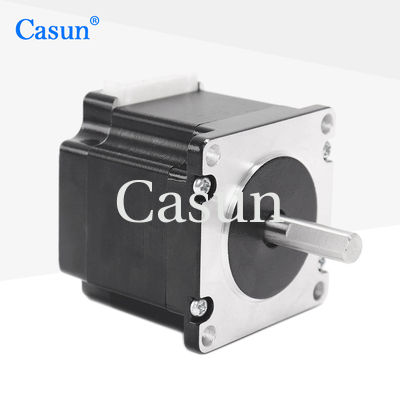

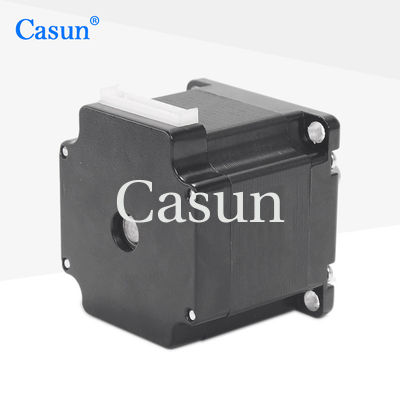

57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 2 57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 3 57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 4 57×57×50mm Stepper Motor 0.88A 0.82N.m For Industrial Automation 5



Please click the "Get a quote" button below to tell us your requirements.
