Home > products > Hybrid Stepper Motor > 3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC

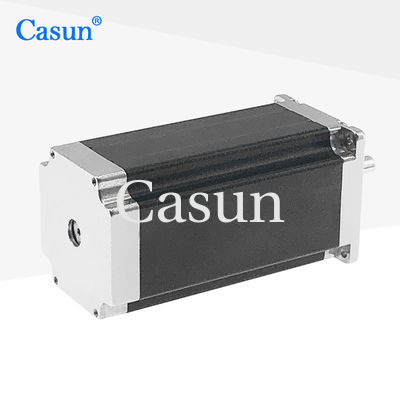

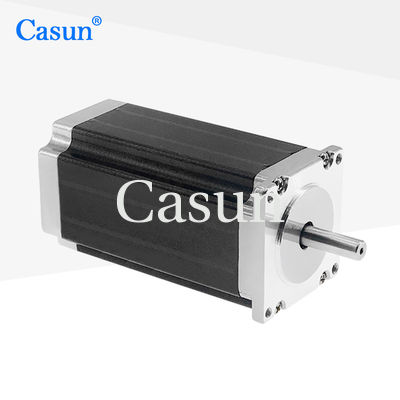

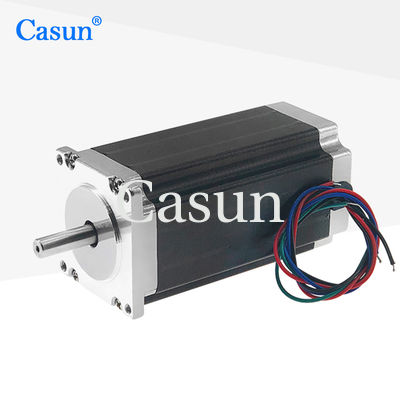

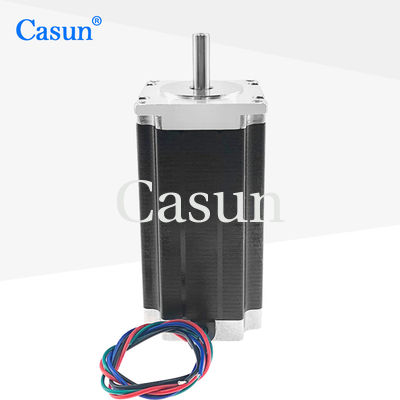

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4932-20B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

57x57x100mm NEMA 23 Stepping Motor

,

3.0A NEMA 23 Stepping Motor

,

3.2N.m NEMA 23 Stepping Motor

Step Angel:
1.8°
Holding Torque:
3200mN.m
Current:
3.5A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
3200mN.m
Current:
3.5A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 20mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

It can usually run for a long time without maintenance and is suitable for applications that work for a long time.

In CNC machine tools, stepper motors can achieve precise positioning and fast response, improving the machining accuracy and efficiency of the machine tool.





Features:

  • High torque and high precision

  • We offer custom services and accept contract manufacturing

  • Professional drivetrain solution specialist

  • Our engineers will be in touch within 48 hours to provide the best solution

  • Every stepper motor model is adaptable to various applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.5 A

Holding Torque

3200 mN.m

Resistance

2.1 ohm

Inductance

7.5 mH

Rotor Inertia

650 g-cm²

Motor weight

1.3 kg

Number of leads

4

Connection

Bipolar

Appearance

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 0

Dimensions

3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 2 3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 3 3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 4 3.2N.m 57x57x100mm NEMA 23 425oz Stepping Motor 3.0A 57BYG Kit CNC 5



Please click the "Get a quote" button below to tell us your requirements.
