Home > products > Hybrid Stepper Motor > NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine

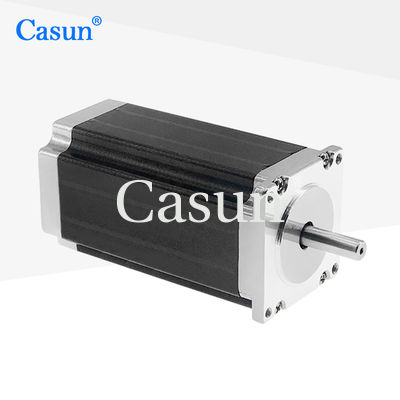

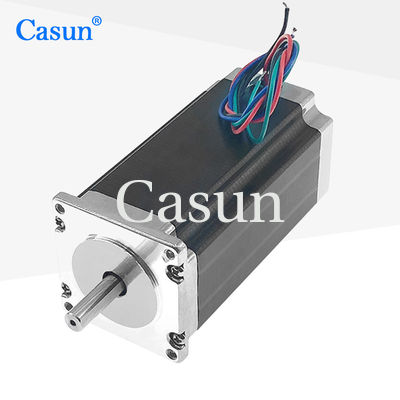

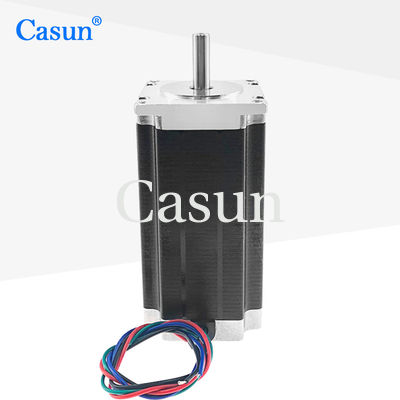

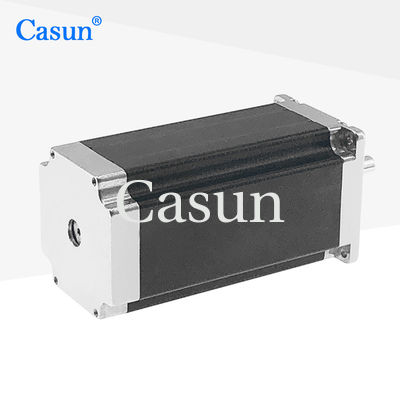

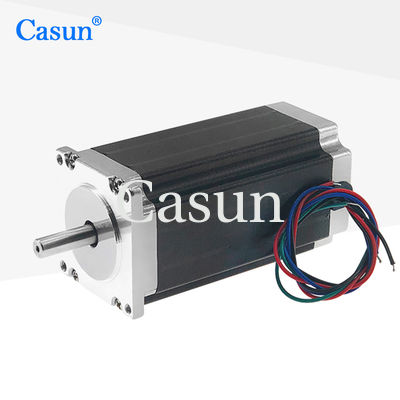

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine

Product Details

Place of Origin: CHINA

Brand Name: Casun

Certification: CE,ROHS,ISO

Model Number: 57SHD4972-21B

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: $3.14-$5

Packaging Details: Carton:36x29x14cm

Delivery Time: 7-15 days

Payment Terms: D/A, T/T, L/C, D/P

Supply Ability: 40000+PCS+Month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

57x57x112mm NEMA23 Stepper Motor

,

3.0N.m NEMA23 Stepper Motor

,

Electronic Embroidery Machine NEMA23 Stepper Motor

Step Angel:
1.8°
Holding Torque:
3.0N.m
Current:
4.0A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 21mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Step Angel:
1.8°
Holding Torque:
3.0N.m
Current:
4.0A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 21mm Length
Shaft Diameter:
8mm
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Product Description

In the field of robotics, stepper motors can achieve precise motion control, improving the flexibility and stability of robots.

Stepper motors do not experience speed fluctuations at low speeds.





Features:

  • High torque and high precision

  • We offer custom services and accept contract manufacturing

  • Professional drivetrain solution specialist

  • With a 12-year history in China, we have assisted over 800 clients

  • Distributors are sought after!





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.5 A

Holding Torque

3000 mN.m

Resistance

1.3 ohm

Inductance

6.0 mH

Rotor Inertia

800 g-cm²

Motor weight

1.7 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 0

Dimensions

NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 2 NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 3 NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 4 NEMA23 Stepper Motor 57x57x112mm 3.0N.m Open Source For Electronic Embroidery Machine 5



Please click the "Get a quote" button below to tell us your requirements.
