products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

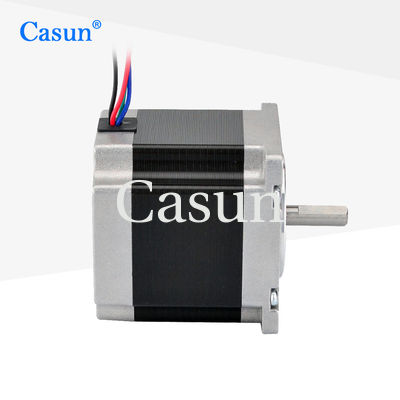

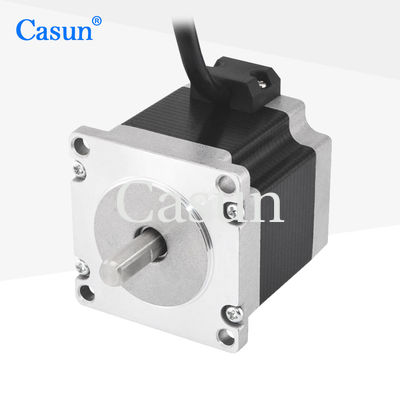

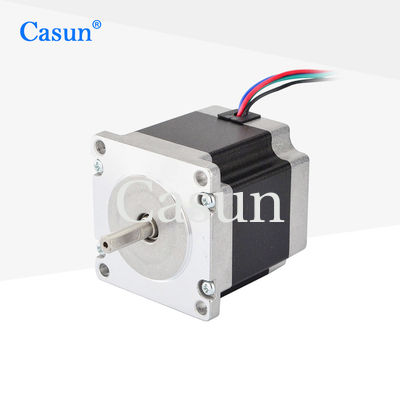

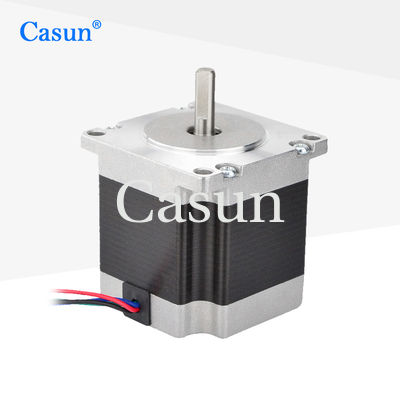

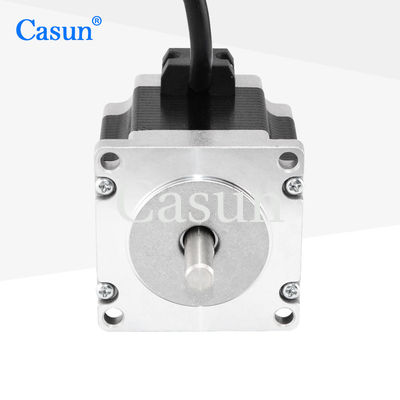

1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor

name

1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor

Brand Name: Casun
Model Number: 57SHD4425-27BH
MOQ: 1PC
Price: $23.94-$28.34
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angle:
1.8°
Rated Voltage:
2.5V
Detent Torque:
40mN.m
Rated Current:
2.8A
Holding Torque:
1260mN.m
Mass:
0.7kg
Packaging Details:
Carton:38x29xc14m
Highlight:

1260mN.m Hybrid Stepper Motor

,

2.5V Hybrid Stepper Motor

,

2.8A Hybrid Stepper Motor

Product Description

Nema23 57X57MM Hybrid Stepper Motor

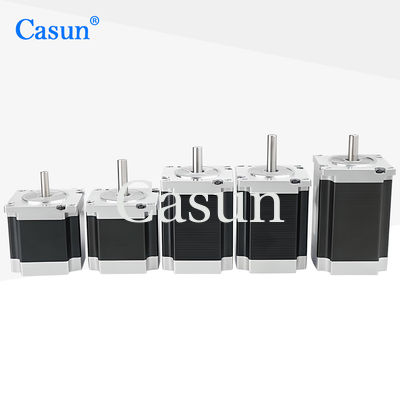

The 57mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.

Use with a microstepping driver to reduce vibration and achieve higher step resolution.

Choose a baseline version or request your own customized configuration.



Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • CE and RoHS approved

  • Customizations on request

Dimensions

1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor 0









Motor Specifications



Step Angel



1.8 °

Rated voltage



2.5 V DC

Number of Phase



2 Phase

Rated Current



2.8Amp

Holding Torque



1260mN.m

Detent torque



40mN.m

Phase resistance



0.9ohm±10%(At 20℃)

Phase inductance



2.5mH±20%(1kHz 1v rms)

Rotor inertia



300g.cm

Motor weight



0.7kg
Insulation resistance

100MΩmin.(500V DC)

Insulation class



Class B













Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor 1 1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor 2 1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor 3 1260mN.m Hybrid Stepper Motor 2.8A 2.5V 1.8 Degree Four Wire Motor 4





Please click the "Get  a quote" button below to tell us your requirements.
