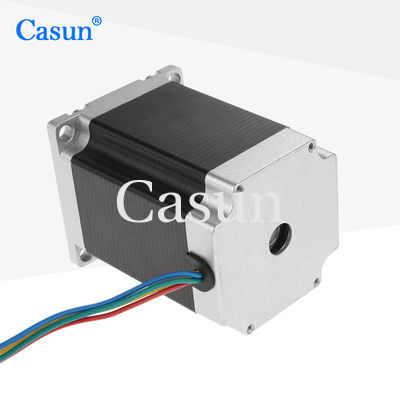

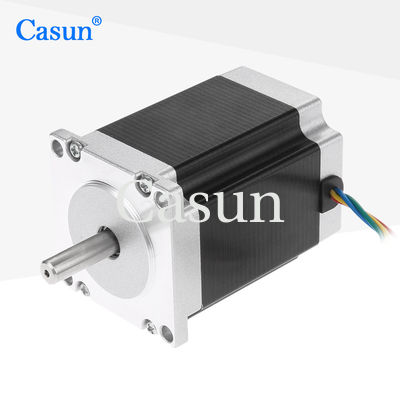

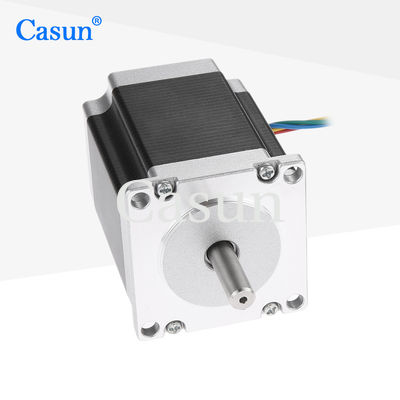

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools

name

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools

Brand Name: Casun
Model Number: 57SHD4801-20
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.75N.m
Current:
0.8A
Motor Length:
76mm
Shaft:
Round Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

CNC NEMA 23 Stepper Motor

,

76mm NEMA 23 Stepper Motor

,

1.75N.m NEMA 23 Stepper Motor

Product Description

Very useful in applications that require high-precision positioning and heavy loads, such as 3D printing, CNC machine tools, etc.

Strong resistance to electromagnetic interference, suitable for use in industrial environments.



Features:

  • Experts in drivetrain solutions

  • Specializing in delivering personalized services is our area of expertise

  • We are experts in drivetrain solutions

  • Dealers are actively sought after

  • Our stepper motors are versatile and adaptable to various applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

0.8 A

Holding Torque

1.75 N.m

Resistance

12 ohm

Inductance

48 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 0

Dimensions

NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 2 NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 3 NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 4 NEMA 23 Stepper Motor Hybrid 1.75N.m 76mm body for CNC machine tools 5



Please click the "Get a quote" button below to tell us your requirements.
