Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment

name

Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment

Brand Name: Casun
Model Number: F57SHD4816-21B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.75N.m
Current:
3.0A
Motor Length:
76mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Waterproof NEMA 23 Stepper Motor

,

Outdoor Equipment NEMA 23 Stepper Motor

,

3.0A NEMA 23 Stepper Motor

Product Description

Widely used in environments that require moisture and water resistance, such as outdoor equipment, medical devices, industrial automation, etc.

It can prevent electrical short circuits and other safety hazards, improving the overall safety of the equipment.



Features:

  • Experts in drivetrain solutions

  • Tailored solutions are our forte

  • We are experts in drivetrain solutions

  • Dealers are actively sought after

  • Expect a response from our engineers within 48 hours with the best solution for your needs





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

3.0 A

Holding Torque

2.0 N.m

Resistance

0.95 ohm

Inductance

3.6 mH

Rotor Inertia

460 g-cm²

Motor weight1

1 kg

Number of leads

4

Connection

Bipolar

Appearance

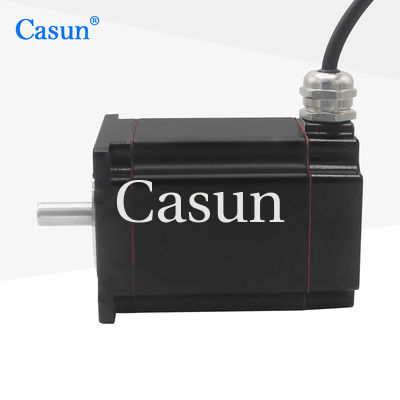

Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 0

Dimensions

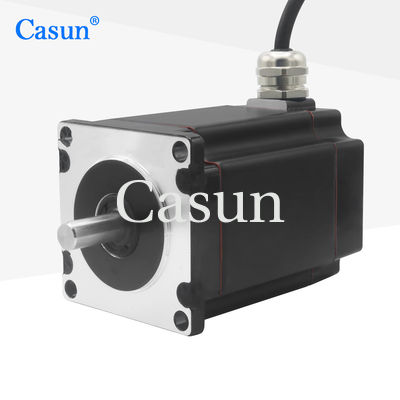

Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

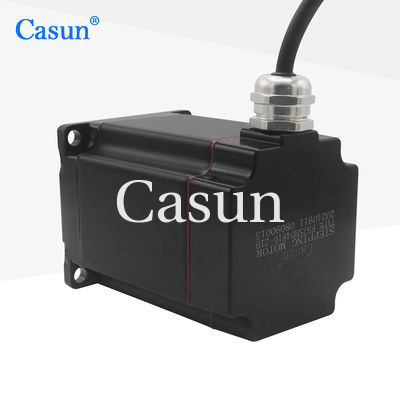

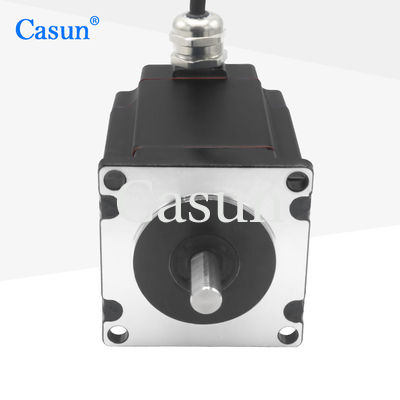

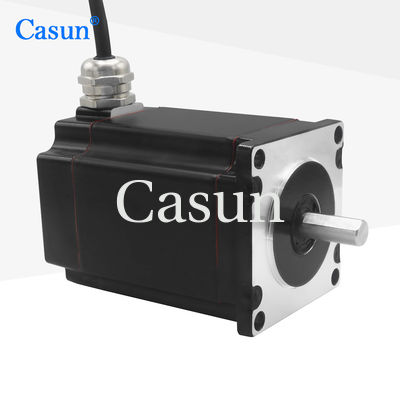

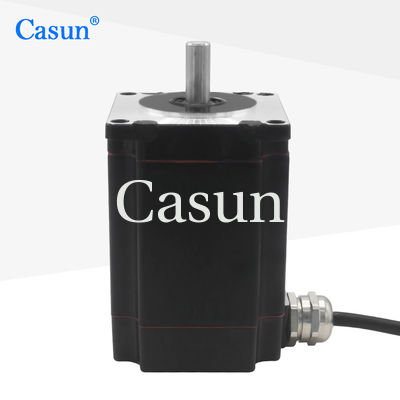

Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 2 Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 3 Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 4 Waterproof Stepper Motor NEMA 23 57×57×76mm 2.0N.m 3.0A For Outdoor Equipment 5



Please click the "Get a quote" button below to tell us your requirements.
