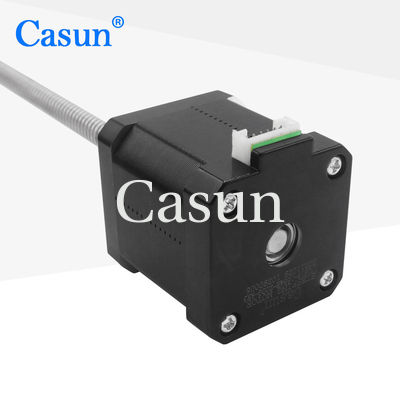

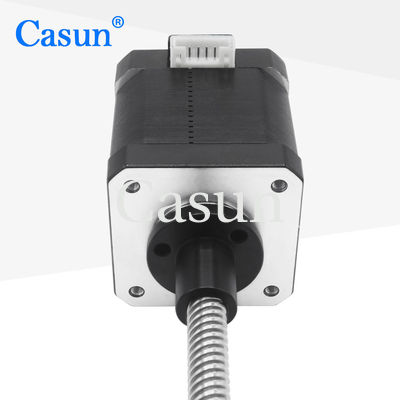

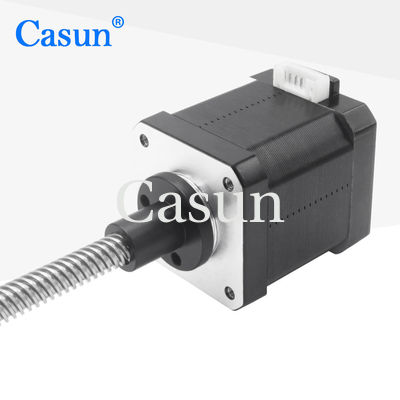

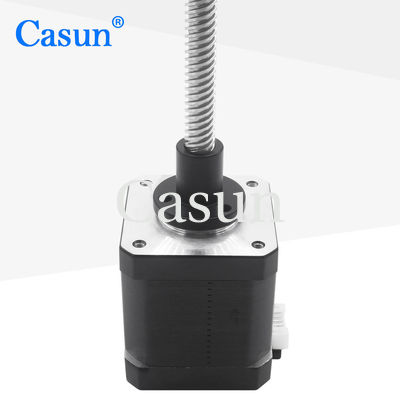

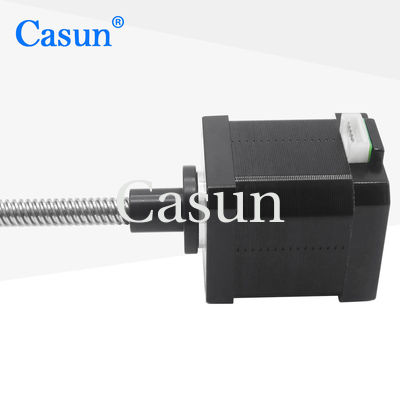

1.8 Degree 2 Phase Nema 17 Tr88 Linear Stepper Motor 4242*48mm 0.5N.m For CNC

1.8 Degree 2 Phase Nema 17 Tr88 Linear Stepper Motor 4242*48mm 0.5N.m For CNC

Brand Name:	Casun
Model Number:	17LS19-1684E-200G
MOQ:	1PC
Price:	$13.5-$14
Payment Terms:	D/A, T/T, L/C, D/P
Supply Ability:	40000+PCS+Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE,ROHS,ISO

Color:

Black

Current:

1.68Amp

Holding Torque:

500mN.m

Customized:

The Motor Can Be Designed &manufactured With Customized Request.

Screw Lead:

Tr8X8

Packaging Details:

Carton:38x29xc14m

Highlight:

0.5N.m Nema 17 Linear Stepper Motor

CNC Nema 17 Linear Stepper Motor

Product Description

1.8 Degree 2 Phase Nema 17 Tr8*8 Linear Stepper Motor 42*42*48mm 0.5N.m For CNC

Product Overview

The external drive screw structure effectively reduces noise and vibration during motor operation, enhancing user comfort. This externally driven screw stepper motor offers high precision, achieving excellent position control accuracy and speed control accuracy.

Key Features

Ten-year warranty for confident purchases
Hybrid stepper construction
Available in single or double shaft versions
CE and RoHS approved
Our engineers will reach out within 48 hours to offer the optimal solution

Dimensions

Motor Specifications

Parameter	Value
Step Angle	1.8°
Frame Size	42 mm
Number of Phase	2 Phase
Rated Current	1.68A
Holding Torque	500 mN.m
Resistance	1.65 ohm
Inductance	2.8 mH
Rotor Inertia	72g-cm²
Motor Weight	0.38kg
Lead Screw	Tr8X8
Connection	Bipolar

Operating Specifications

Step Angle	1.8°
Maximum Temperature	80°C maximum
Ambient Temperature	-20°C to 50°C
Storage Temperature	-20°C to 100°C
Humidity Range	85% or less, non-condensing
Magnet Wire Insulation	Class B 130°C
Insulation Resistance	100M Ohm at 500 VDC
Dielectric Strength	500 VDC for 1 min
Shaft Radial Play	0.02Max. (450g-load)
Shaft Axial Play	0.08Max. (450g-load)
Max. Radial Force	28N (20mm from the flange)
Max. Axial Force	10N

Available Models

Model	Holding Torque	Step Angle	Motor Length	Type of Shaft	Rated Current
42SHD4950	0.13N.m	1.8°	20mm	D Shaft-20mm	1.0A
42SHD4003	0.26N.m	1.8°	34mm	D Shaft-20mm	0.4A
42SHD0261	0.45N.m	1.8°	40mm	D Shaft-20mm	1.68A
42SHD4425	0.59N.m	1.8°	48mm	D Shaft-24mm	2.0A
42SHD4813	0.8N.m	1.8°	60mm	D Shaft-24mm	2.1A

Customization Options

If our standard motor cannot meet your needs, we can customize the motor according to your requirements.

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Encoder

Brake

Gearbox

Shaft

Please click the "Get a quote" button below to tell us your requirements.
