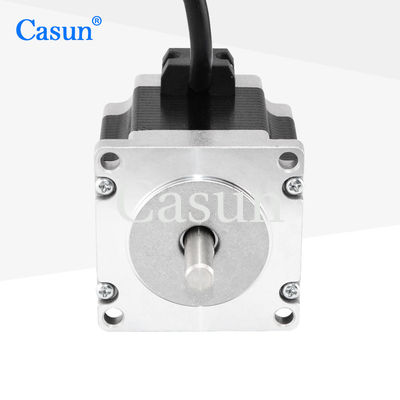

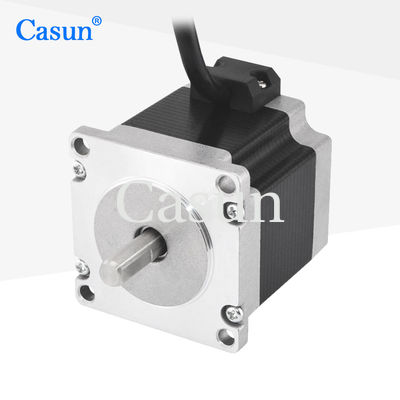

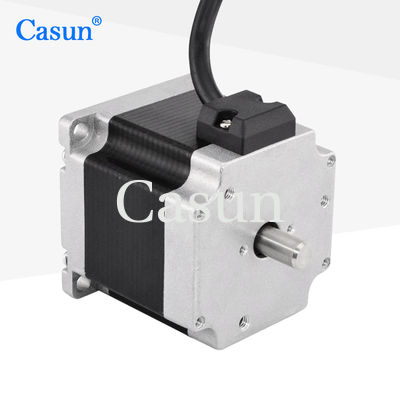

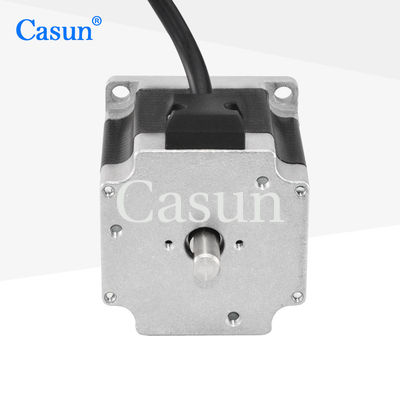

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT

name

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT

Brand Name: Casun
Model Number: 57SHD4425-21BSH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.26N.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Dual Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

2.8A NEMA 23 STEPPER MOTOR

,

54MM NEMA 23 STEPPER MOTOR

,

NEMA 23 STEPPER MOTOR for Robots

Product Description

Supply various international accreditations for the tech and electronics sectors.

Provide “multiple international certifications” for high-tech industry and electronic industry equipment.



Features:

  • Supply various international accreditations for the tech and electronics sectors

  • We are open to contract manufacturing arrangements

  • Every stepper motor model is adaptable to various applications

  • Dealers are actively sought after

  • Provide “multiple international certifications” for high-tech industry and electronic industry equipment





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1.26N.m

Resistance

0.9ohm

Inductance

2.5mH

Rotor Inertia

300 g-cm²

Motor weight1

0.7 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 2 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 3 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 4 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A ROBOT 5



Please click the "Get a quote" button below to tell us your requirements.
