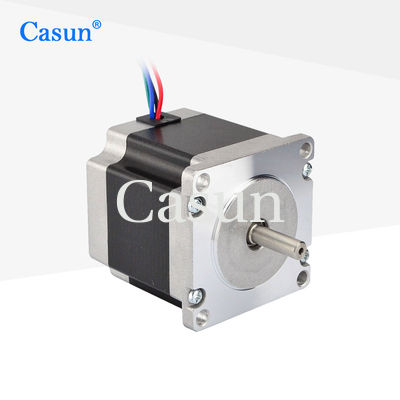

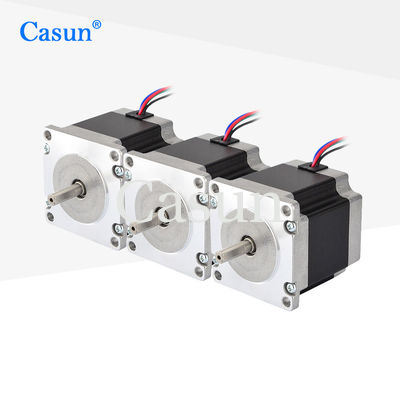

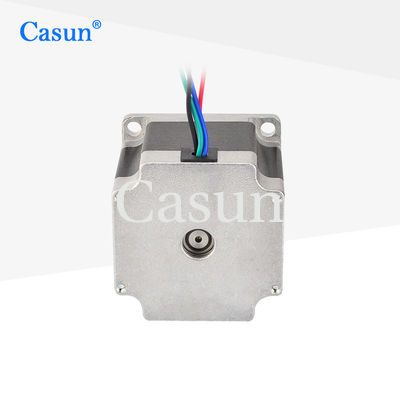

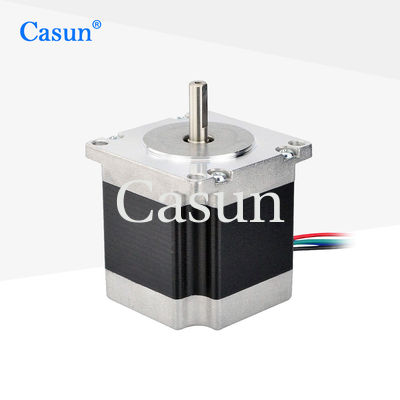

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking

name

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking

Brand Name: Casun
Model Number: 57SHDH4608-27B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.26N.m
Current:
2.8A
Motor Length:
56mm
Shaft:
Round Shaft 27mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Low noise NEMA 23 Stepper Motor

,

Two Phase NEMA 23 Stepper Motor

,

56mm NEMA 23 Stepper Motor

Product Description

Stepper motors can quickly respond to control signals, achieving fast start, stop, and positioning, which is very important for automation equipment that requires fast response.

For applications that do not require high precision but require high torque, stepper motors are a more economical choice.



Features:

  • Experts in drivetrain solutions

  • Supply various international accreditations for the tech and electronics sectors

  • Each model of stepper motor can be suitable for different scenarios

  • With 12 years of experience in China, we have served over 800 satisfied customers

  • Custom solutions and contract manufacturing are available





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1.26 N.m

Resistance

0.9 ohm

Inductance

2.5 mH

Rotor Inertia

280 g-cm²

Motor weight1

0.62 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 0

Dimensions

NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 2 NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 3 NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 4 NEMA 23 Two Phase 1.8° 57 STEPPER MOTOR 56mm Body Low Noise 1.26N.m For Laser Marking 5



Please click the "Get a quote" button below to tell us your requirements.
