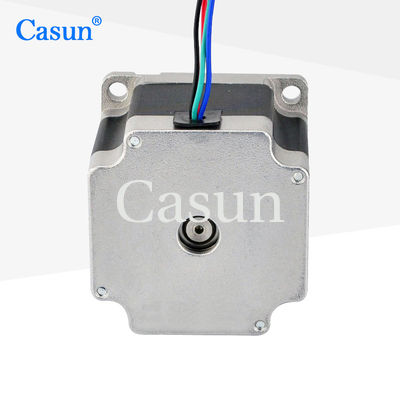

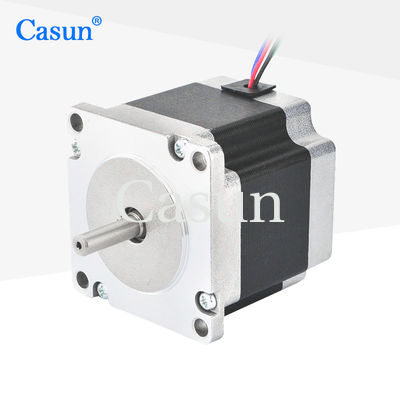

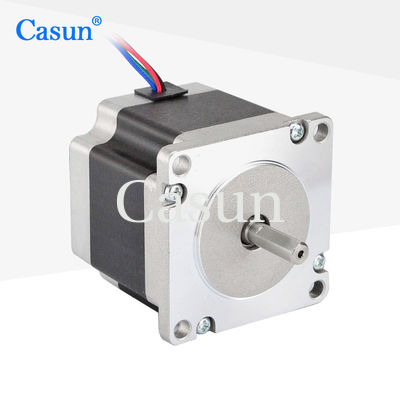

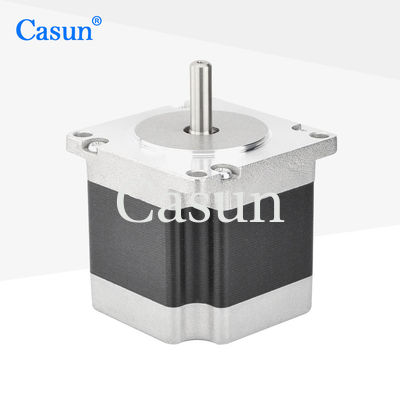

NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking

name

NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking

Brand Name: Casun
Model Number: 23HS5128
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1010mN.m
Current:
2.8A
Motor Length:
50mm
Shaft:
Milling Flat Shaft 27mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

Low noise NEMA 23 stepper motor

,

1.01N.m Length NEMA 23 stepper motor

,

50mm body NEMA 23 stepper motor

Product Description
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking
The stepper motor has improved its stability and reliability through optimized design and manufacturing processes, enabling the motor to operate stably for long periods of time in harsh working environments. Widely used in various fields such as automation equipment, robots, and robotic arms.
Key Features
High accuracy and torque
For electronic industrial equipment and high-tech industry equipment
Our engineers will contact you within 48 hours to offer the most suitable solution
With a 12-year history in China and more than 800 clients served
Every stepper motor model is adaptable to a range of applications
Motor Specifications
Step Angle 1.8°
Frame Size 57 mm
Number of Phase 2 Phase
Rated Current 2.8 A
Holding Torque 1010 mN.m
Resistance 0.83 ohm
Inductance 2.2 mH
Rotor Inertia 220 g-cm²
Motor Weight 0.55 kg
Number of Leads 4
Connection Bipolar
Appearance & Dimensions
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 0
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 1
Operating Specifications
Step Angle 1.8°
Maximum Temperature 80°C maximum
Ambient Temperature -20°C to 50°C
Storage Temperature -20°C to 100°C
Humidity Range 85% or less, non-condensing
Magnet Wire Insulation Class B 130 deg C
Insulation Resistance 100M Ohm at 500 VDC
Dielectric Strength 500 VDC for 1 min
Available Models
Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A
Customization Options
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 2
Encoder
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 3
Brake
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 4
Gearbox
NEMA 23 Two-phase 1.8° 57 STEPPER MOTOR 50mm Body Low Noise 1.01N.m For Laser Marking 5
Shaft
Please click the "Get a quote" button below to tell us your requirements.
