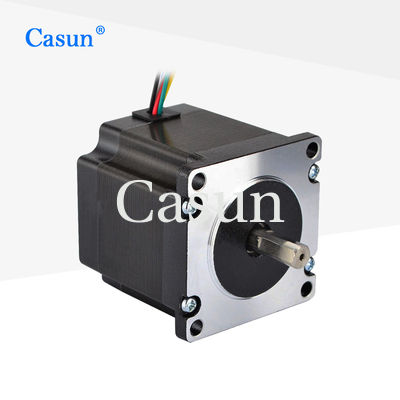

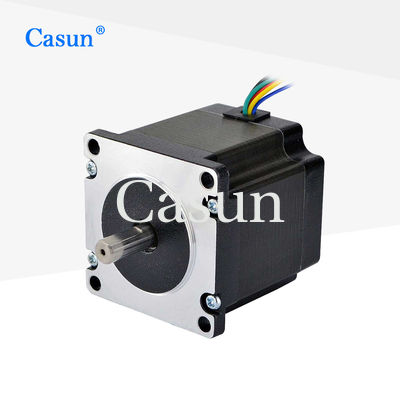

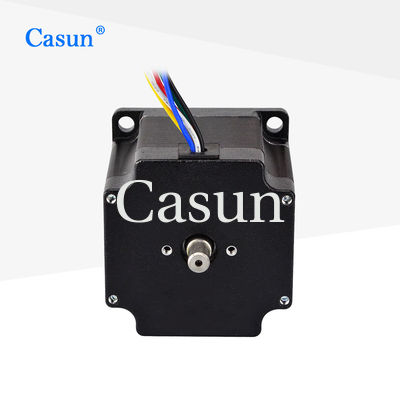

NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT

name

NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT

Brand Name: Casun
Model Number: 57SHD6448-20BSH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
1.0A
Motor Length:
54mm
Shaft:

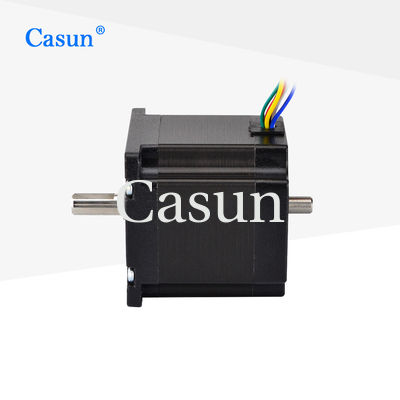

Dual Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

FOUR-PHASE NEMA 23 STEPPER MOTOR

,

1.0A NEMA 23 STEPPER MOTOR

,

54MM BODY NEMA 23 STEPPER MOTOR

Product Description

Dual axis stepper motors typically have higher torque because the two axes can jointly provide greater torque.

The dual axis stepper motor can adapt to various application scenarios, such as automation equipment, precision instruments, robots, etc.



Features:

  • High accuracy and torque

  • Custom solutions and contract manufacturing are available

  • Our engineers will contact you within 48 hours to offer the most suitable solution

  • We are a professional research and development manufacturing company

  • Every stepper motor model is adaptable to a range of applications





Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

1.0 A

Holding Torque

900 mN.m

Resistance

7.4 ohm

Inductance

10 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 0

Dimensions

NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 2 NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 3 NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 4 NEMA 23 FOUR-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A AUTOMATION EQUIPMENT 5



Please click the "Get a quote" button below to tell us your requirements.
