products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Hybrid Stepper Motor
Created with Pixso.

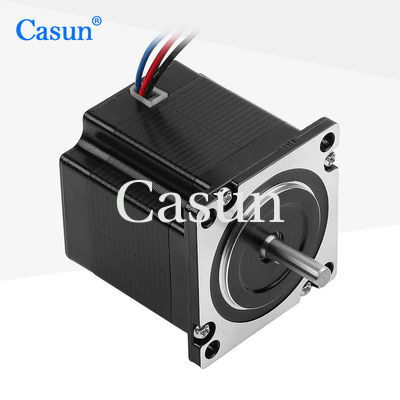

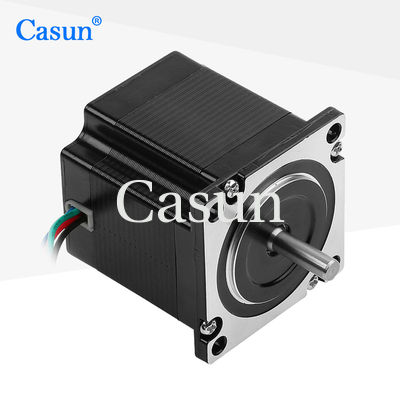

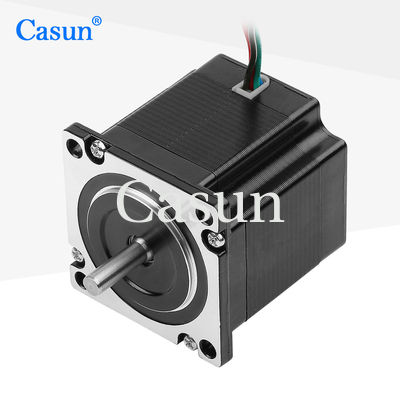

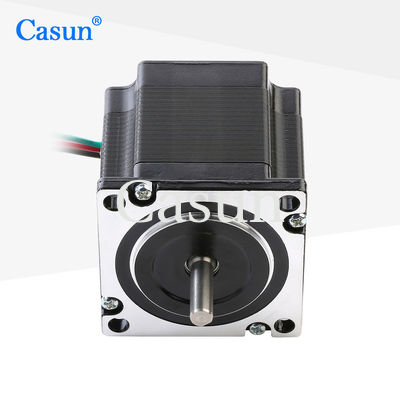

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY

name

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY

Brand Name: Casun
Model Number: 23HS22-2804S
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1.26N.m
Current:
2.8A
Motor Length:
54mm
Shaft:
Round Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

54MM NEMA 23 STEPPER MOTOR

,

57 NEMA 23 STEPPER MOTOR

,

Round Shaft NEMA 23 STEPPER MOTOR

Product Description

This makes them more convenient in design and implementation, especially in small and medium-sized automation systems.

The structure of the stepper motor is simple, easy to maintain, and has high reliability.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • We offer a range of stepper motors designed for different scenarios

  • Looking for dealers! We provide custom services and contract manufacturing

  • High torque and high precision

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 1



Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

2.8 A

Holding Torque

1.26 N.m

Resistance

0.9 ohm

Inductance

2.5 mH

Rotor Inertia

300 g-cm²

Motor weight

0.7 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 2 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 3 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 4 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 2.8A TEXTILE MACHINERY 5



Please click the "Get a quote" button below to tell us your requirements.



Tags:

2 Phase Bipolar Stepper Motor

Nema 6 Bipolar Stepper Motor

54MM NEMA 23 STEPPER MOTOR
