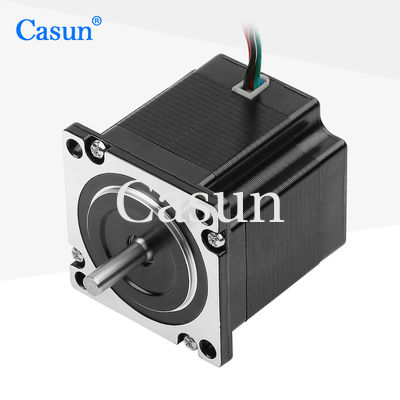

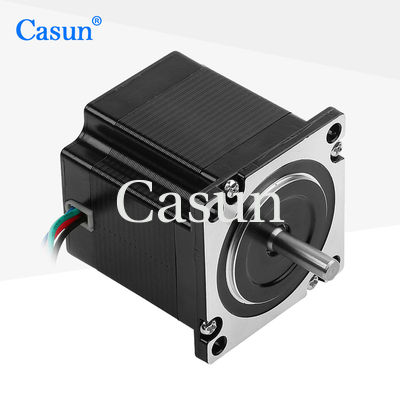

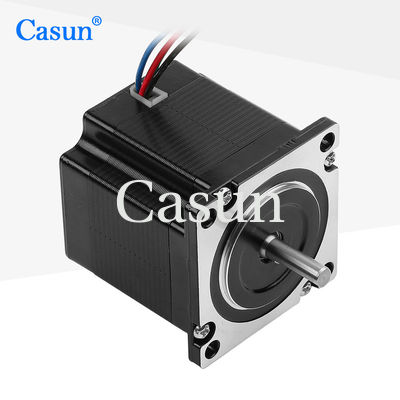

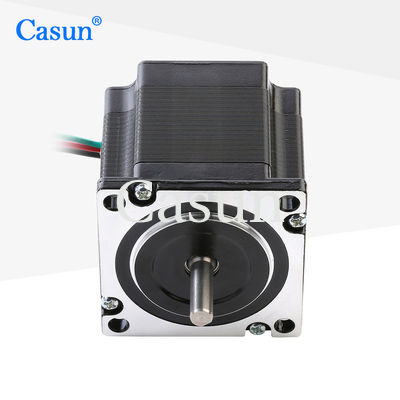

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE

name

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE

Brand Name: Casun
Model Number: 57SHD6448-21BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
900mN.m
Current:
1.0A
Motor Length:
54mm
Shaft:
Milling Flat Shaft 21mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.0A NEMA 23 Stepper Motor

,

High Torque NEMA 23 Stepper Motor

,

54MM NEMA 23 Stepper Motor

Product Description

The low cost of NEMA 23 stepper motors makes them highly cost-effective in many application scenarios.

Stepper motors can provide high torque at low speeds, making them ideal for applications that require high torque, such as robotic arms and 3D printers.



Features:

  • High accuracy and torque

  • Offer “a variety of international accreditations” for equipment in the high-tech and electronics sectors

  • Boasting high torque and precision

  • Dealers wanted!

  • Every stepper motor model is adaptable to a range of applications





Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

1.0 A

Holding Torque

900 mN.m

Resistance

7.4 ohm

Inductance

10 mH

Rotor Inertia

260 g-cm²

Motor weight

0.6 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 0

Dimensions

NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 2 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 3 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 4 NEMA 23 TWO-PHASE 1.8° 57 STEPPER MOTOR 54MM BODY 1.0A PRINTING MACHINE 5



Please click the "Get a quote" button below to tell us your requirements.
