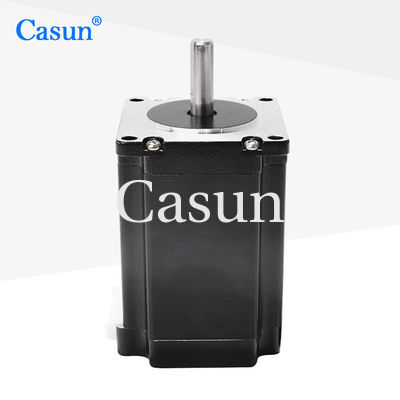

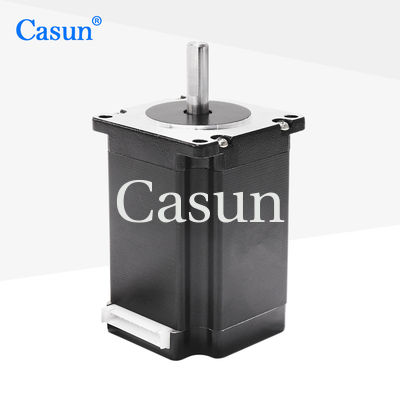

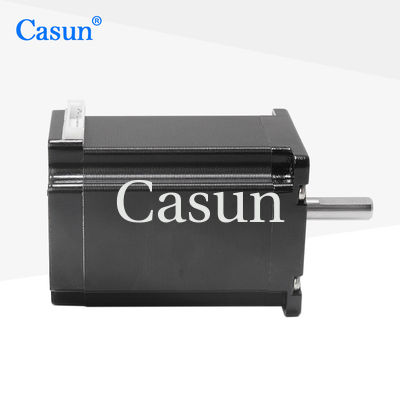

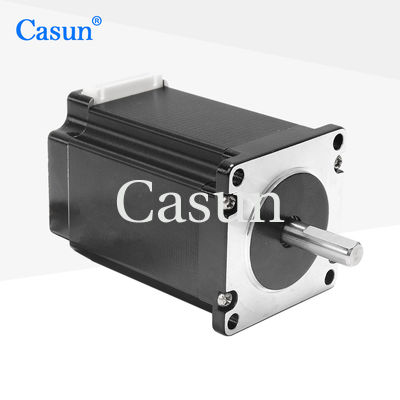

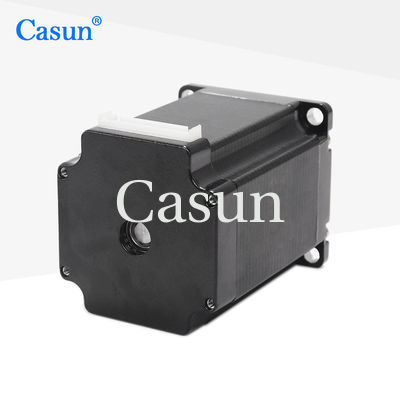

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO

name

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO

Brand Name: Casun
Model Number: 57SHD0906-20BH
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1600mN.m
Current:
2.0A
Motor Length:
82.8mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.6N.m NEMA 23 STEPPING MOTOR

,

2 PHASE NEMA 23 STEPPING MOTOR

Product Description

NEMA 23 stepper motors have high speed capability, allowing for rapid rotation and positioning.

Very suitable for applications that require precise control and positioning, such as 3D printers, robots, etc.

Features:

  • High accuracy and torque

  • Enjoy a ten-year warranty and complete peace of mind

  • Boasting high torque and precision

  • Expertise in R&D and manufacturing

  • Established in China for 12 years, serving over 800 customers





Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

2.0 A

Holding Torque

1600 mN.m

Resistance

2.5 ohm

Inductance

4.9 mH

Rotor Inertia

480 g-cm²

Motor weight

1.2 kg

Number of leads

4

Connection

Bipolar

Appearance

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 0

Dimensions

2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 2 2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 3 2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 4 2 PHASE NEMA 23 STEPPING MOTOR 2.0A 1.6N.m With CE ROHS ISO 5



Please click the "Get a quote" button below to tell us your requirements.
