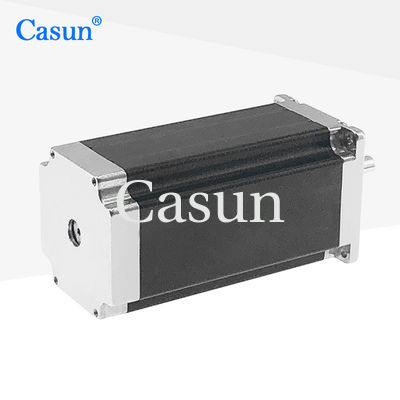

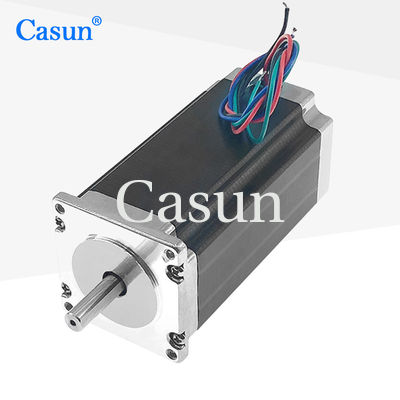

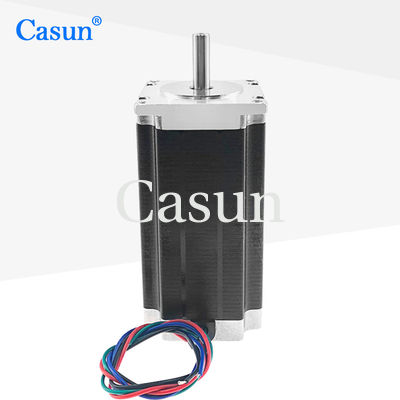

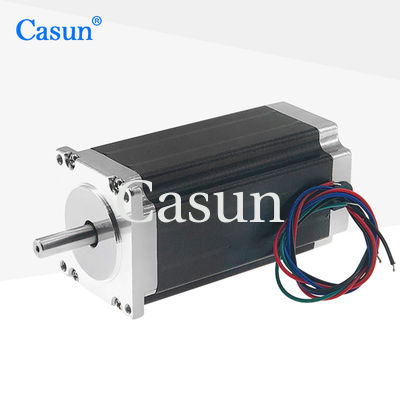

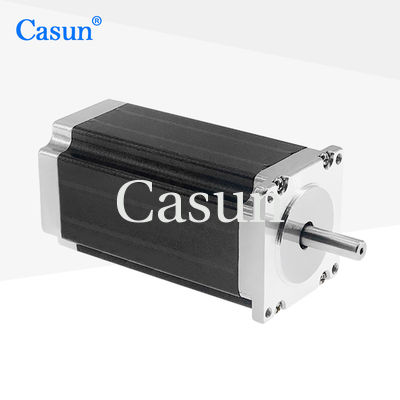

NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation

name

NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation

Brand Name: Casun
Model Number: 57SHD4932-20B
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
3200mN.m
Current:
3.5A
Motor Length:
100mm
Shaft:
Milling Flat Shaft 20mm Length
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

3.5A NEMA 23 Stepper Motor

,

3.5N.m NEMA 23 Stepper Motor

,

100mm NEMA 23 Stepper Motor

Product Description

Stepper motors also have small inertia, which can reduce system vibration and impact, and improve system stability.

Suitable for applications that require high thrust or torque, such as automation equipment, machine tools, printing machinery, etc.

Features:

  • High accuracy and torque

  • Enjoy a ten-year warranty and complete peace of mind

  • Expect to hear from our engineers within 48 hours with the best solution for your needs

  • Custom services available

  • Based in China for 12 years and has assisted over 800 clients





Motor Specifications

Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

4 Phase

Rated Current

3.0 A

Holding Torque

3200 mN.m

Resistance

2.1 ohm

Inductance

7.5 mH

Rotor Inertia

650 g-cm²

Motor weight

1.3 kg

Number of leads

4

Connection

Bipolar

Appearance

NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 0

Dimensions

NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 1


Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft
NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 2 NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 3 NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 4 NEMA 23 Stepper Motor 100mm Body 3.5A 3.5N.m For Industrial Automation 5



Please click the "Get a quote" button below to tell us your requirements.
