Lead Screw Stepper Motor
Created with Pixso.

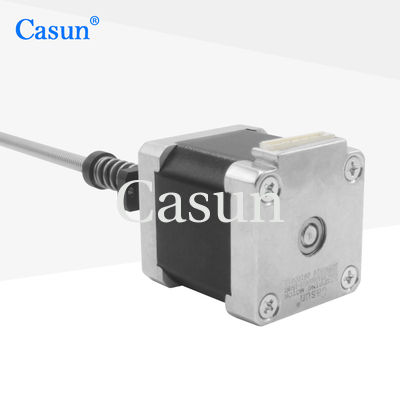

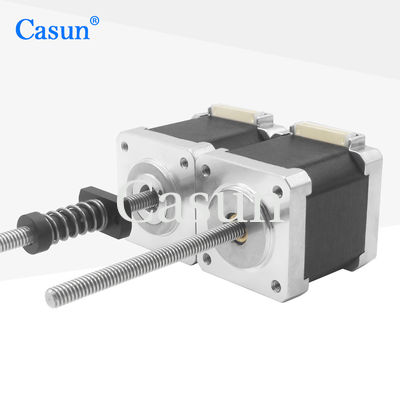

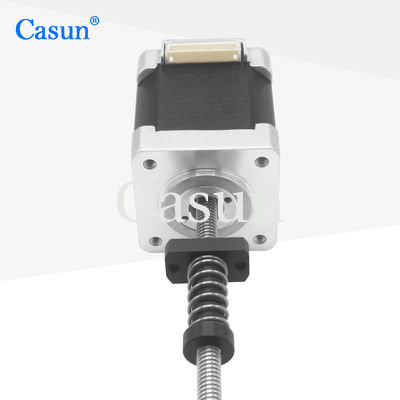

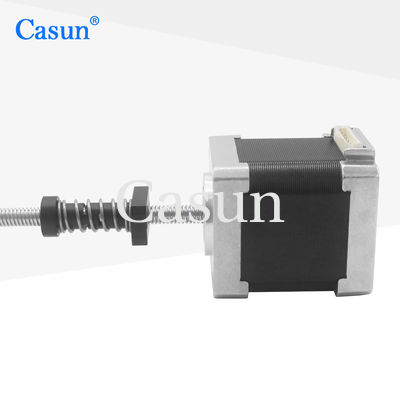

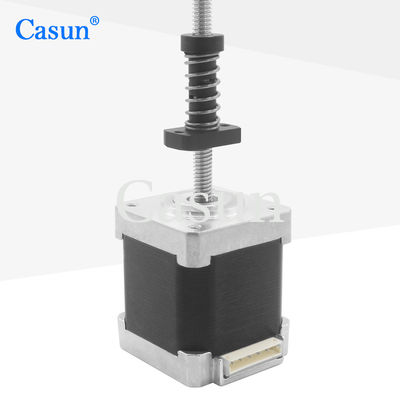

1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m

name

1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m

Brand Name: Casun
Model Number: P35SHD0817-150NT
MOQ: 1PC
Price: $13.5-$14
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Current:
1.5Amp
Holding Torque:
360mN.m
Screw Lead:
Tr5X2
Weight:
0.24kg
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:38x29xc14m
Highlight:

0.36N.m Nema 14 Linear Stepper Motor

,

Nema 14 Linear Stepper Motor

Product Description

The externally driven screw stepper motor can withstand large loads, thanks to the structural strength of the screw and the torque output of the motor itself.

Screw motion is a rolling contact, with minimal wear and a long lifespan.



Features:

  • Ten-year warranty for confident purchases

  • Hybrid stepper construction

  • Available in single or double shaft versions

  • We provide tailored services and are open to contract manufacturing. Seeking distributors! !

  • Welcome contract manufacturing projects

Dimensions

1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m 0







Motor Specifications



Step Angel



1.8 °

Fram Size



35 mm

Number of Phase



2 Phase

Rated Current



1.5Amp

Holding Torque



360 mN.m

Resistance



3.2 ohm

Inductance



4.5 mH

Rotor Inertia



57g-cm²

Motor weight



0.24kg

Lead Screw



Tr5X2

Connection



Bipolar



Operating Specifications





Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min

Shaft Radial Play:0.02Max. (450g-load)

Shaft Axial Play:0.08Max. (450g-load)

Max. radial force:28N (20mm from the flange)

Max. axial force):10N







Torque Curves





Download







If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
            Encoder          |               Brake           |              Gearbox            |           Shaft

1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m 1 1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m 2 1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m 3 1.8 Degree 2 Phase Nema 14 Tr5*2 Linear Stepper Motor 35*35*42mm 0.36N.m 4





Please click the "Get  a quote" button below to tell us your requirements.
