1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit

name

1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit

Brand Name: Casun
Model Number: 57SHY4601-9P
MOQ: 1PC
Price: $3.14-$5
Payment Terms: D/A, T/T, L/C, D/P
Supply Ability: 40000+PCS+Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE,ROHS,ISO
Step Angel:
1.8°
Holding Torque:
1000mN.m
Current:
4.0A
Motor Length:
51mm
Shaft:
Spline Shaft
Customized:
The Motor Can Be Designed &manufactured With Customized Request.
Packaging Details:
Carton:36x29x14cm
Highlight:

1.8 Degree Nema 23 Stepper Motor

,

4.0A Nema 23 Stepper Motor

,

51mm Body Nema 23 Stepper Motor

Product Description

Stepper motors usually use pulse control to control the speed and position of the motor by controlling the number and frequency of pulses.

Widely used in various fields such as automation equipment, robots, 3D printers, CNC machine tools, etc.



Features:

  • High torque and high precision

  • Professional drivetrain solution specialist

  • With 12 years of experience in China, we have served over 800 customers

  • Our engineers will contact you within 48 hours to provide the best solution

  • High torque and high precision

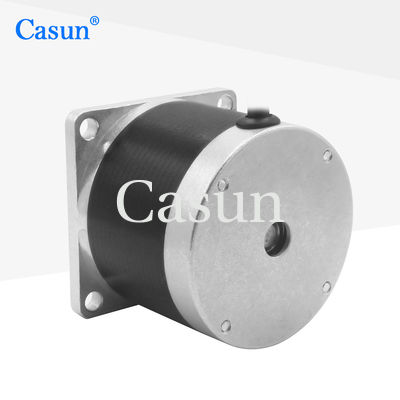

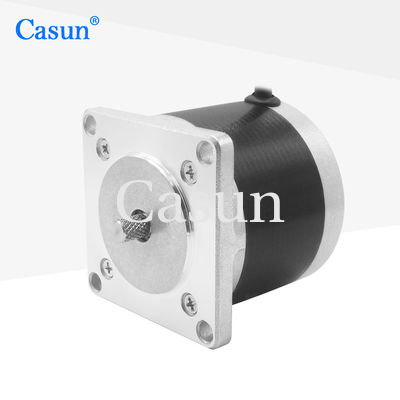

Appearance

1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 0

Dimensions

1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 1

Motor Specifications



Step Angel

1.8 °

Fram Size

57 mm

Number of Phase

2 Phase

Rated Current

4.0 A

Holding Torque

1.0 N.m

Resistance

0.67 ohm

Inductance

2.0 mH

Rotor Inertia

220 g-cm²

Motor weight

0.58 kg

Number of leads

4

Connection

Bipolar

Operating Specifications

Step Angle: 1.8°

Maximum  Temperature :80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range (%) :85% or less, non-condensing

Magnet Wire Insulation :Class B 130 deg C

Insulation Resistance :100M Ohm at 500 VDC

Dielectric Strength :500 VDC for 1 min







Torque Curves













Submodels



Model Holding Torque Step Angle Length Type of Shaft Rated Current
57SHD4013-21B 0.6N.m 1.8° 41mm D Shaft-21mm 1.0A
57SHD4415-21B 1.1N.m 1.8° 54mm D Shaft-21mm 3.0A
57SHD4816-21B 2.0N.m 1.8° 76mm D Shaft-21mm 3.0A
57SHD4913-21B 2.5N.m 1.8° 83mm D Shaft-21mm 3.0A
57SHD4934-20B 3.0N.m 1.8° 100mm D Shaft-20mm 3.0A



Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:

Encoder

Brake

Gearbox

Shaft

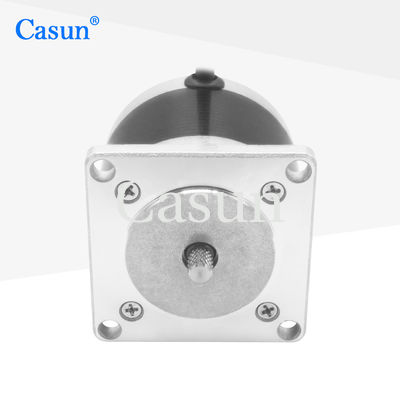

1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 2 1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 3 1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 4 1.8 Degree Nema 23 Stepper Motor 4.0A Smooth Running 51mm Body 1.N.m For CNC Kit 5



Please click the "Get a quote" button below to tell us your requirements.
